4K HD Camera
UltraWide/wide viewing angle optional
6x zoom
Auto Framing
AI Speaker Tracking
Gallery view
Hi-fi Speaker
Microphone array
Noise Reduction
Extension Microphone(Optional)



4K ePTZ Camera

With optional 90° precise viewing angles and 120° panoramic fields of view, providing a comprehensive and clear view for small, medium, and large meeting

rooms, capturing every detail and expression of attendees.








AI Face Tracking

The TB5 is equipped with AI intelligent zoom and tracking functions, which enable the lens to automatically zoom in, zoom out, and pan to ensure that the subject is always kept in the center of the frame. The introduction of this function greatly improves communication efficiency.








High-performance DSP Processor

The DSP processor of TB5 have made revolutionary progress on overall performance, power consumption and core area. It brings fast and smooth video collaboration experience and fully meet a variety of conference scenarios. Powerful codec capabilities can easily achieve 1080p video conferencing.







AI Speaker Tracking

Built-in intelligent analysis algorithms track the speaker's voice in real time and keep it framed in the center of the screen. This technology breaks the distance limit and makes us feel as if we are actually there, creating a face-to-face experience.








Echo cancellation,

intelligent noise reduction


TB5 has built-in audio DSP for automatic echo cancellation and intelligent noise reduction. Even in a noisy environment, it can still resist interference to ensure clear audio during conference.







Hi-Fi Speaker

By delivering audio to the far ends of the room, the loudspeaker, combined with the renowned audio processing technology integrated into the TB5, enables a natural conversational workflow between participants.







Microphone array

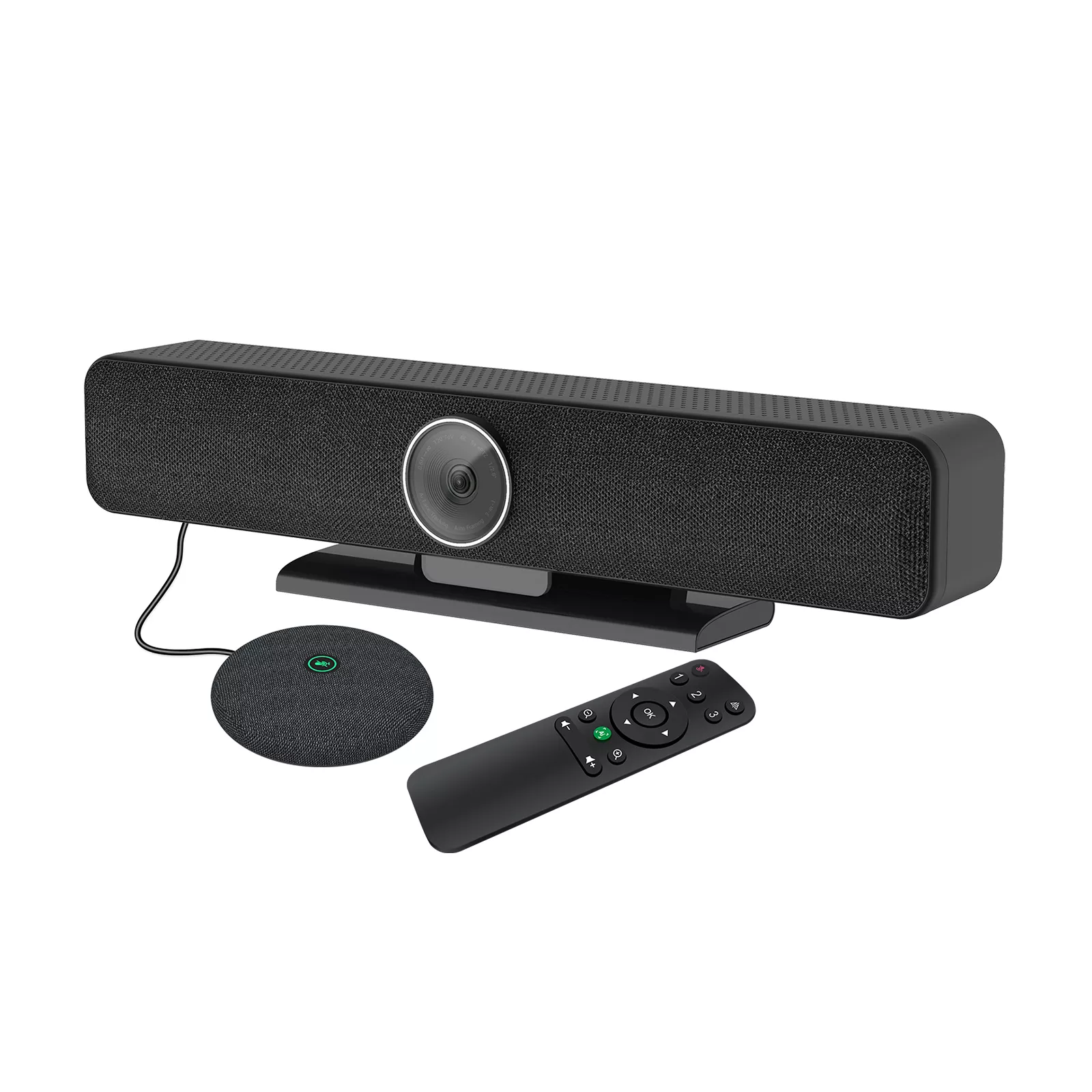

The TB5 features four built-in, high-quality microphones, plus optional four wireless microphones or one wired extension

microphone. It provides excellent voice pickup with a range of up to 5-10 meters.

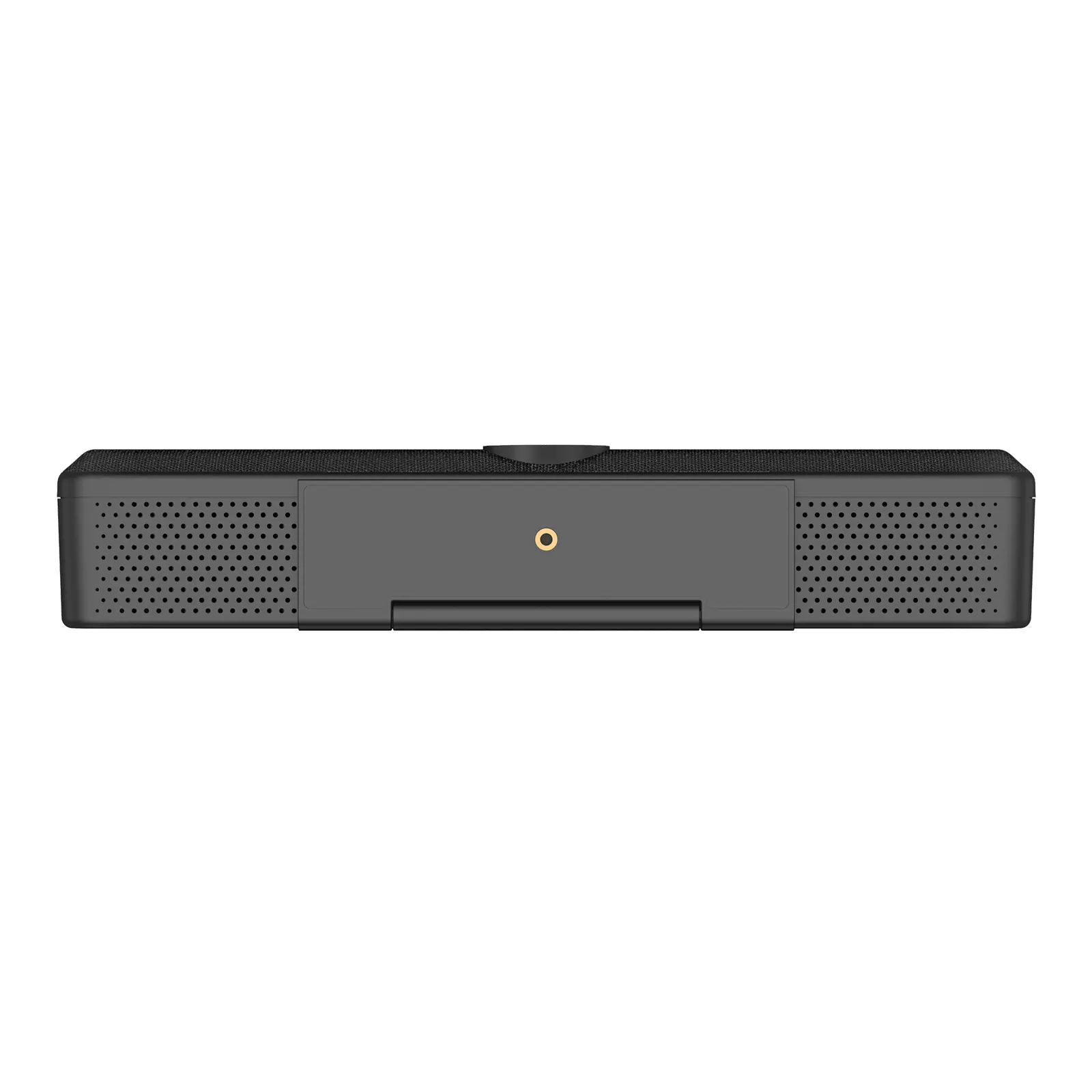

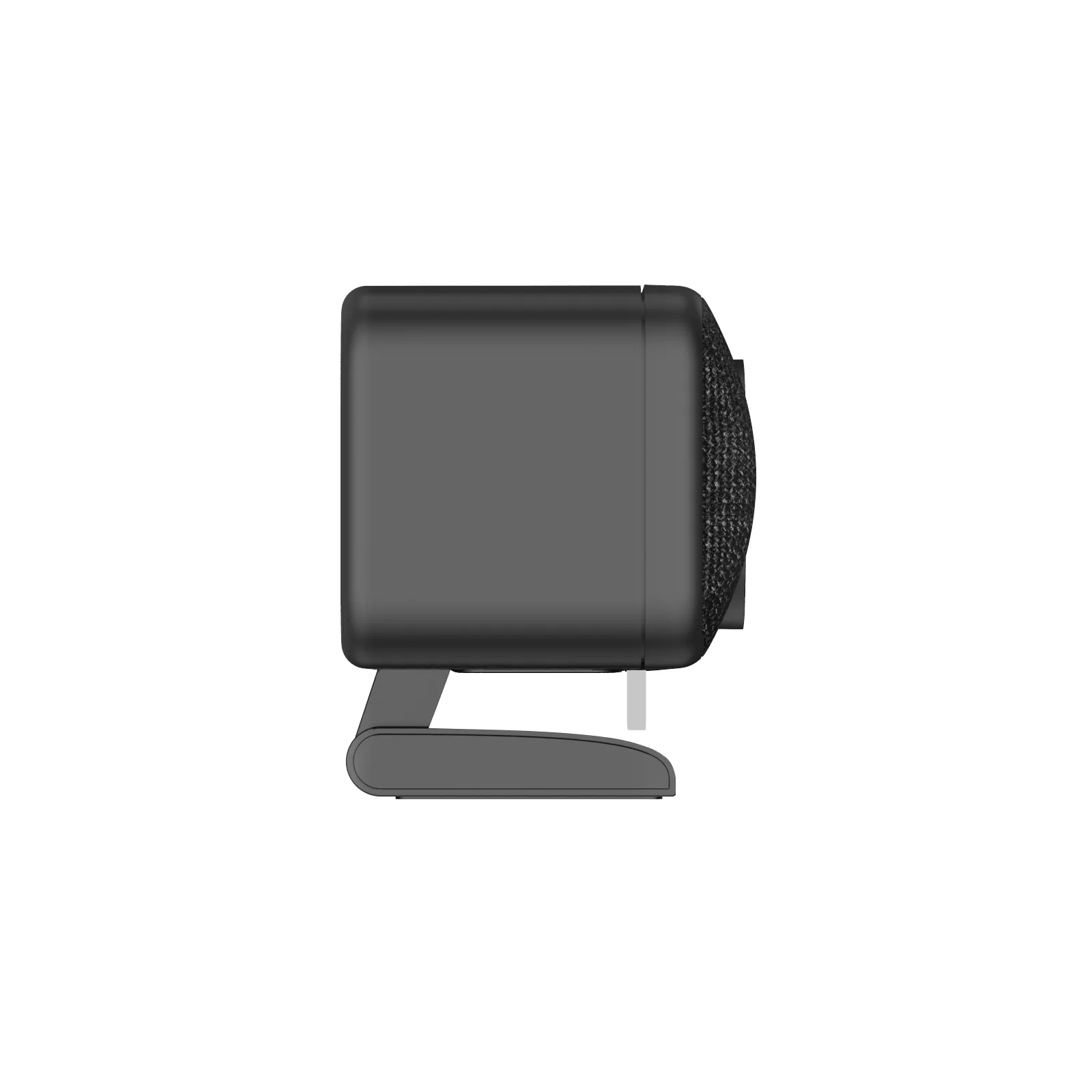

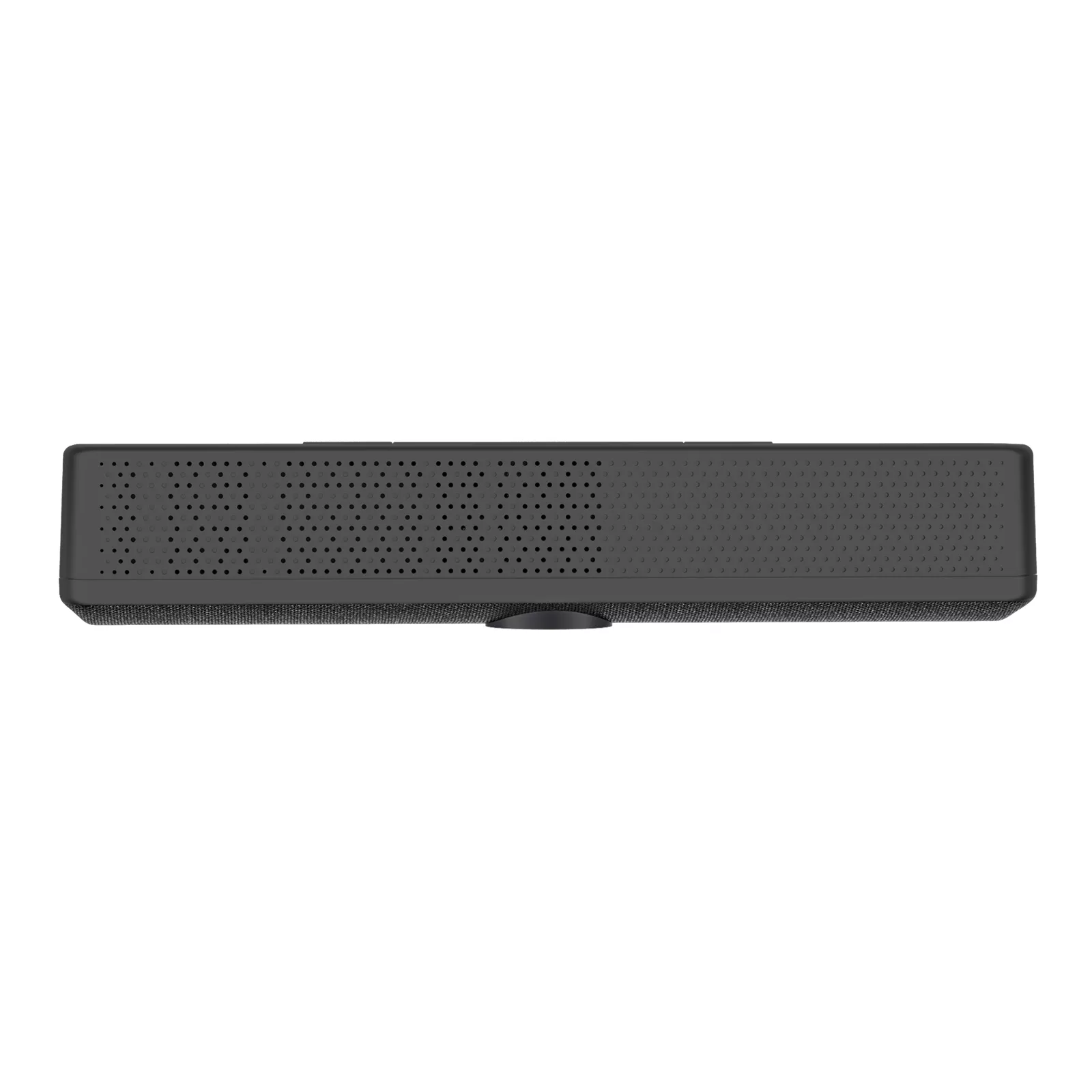

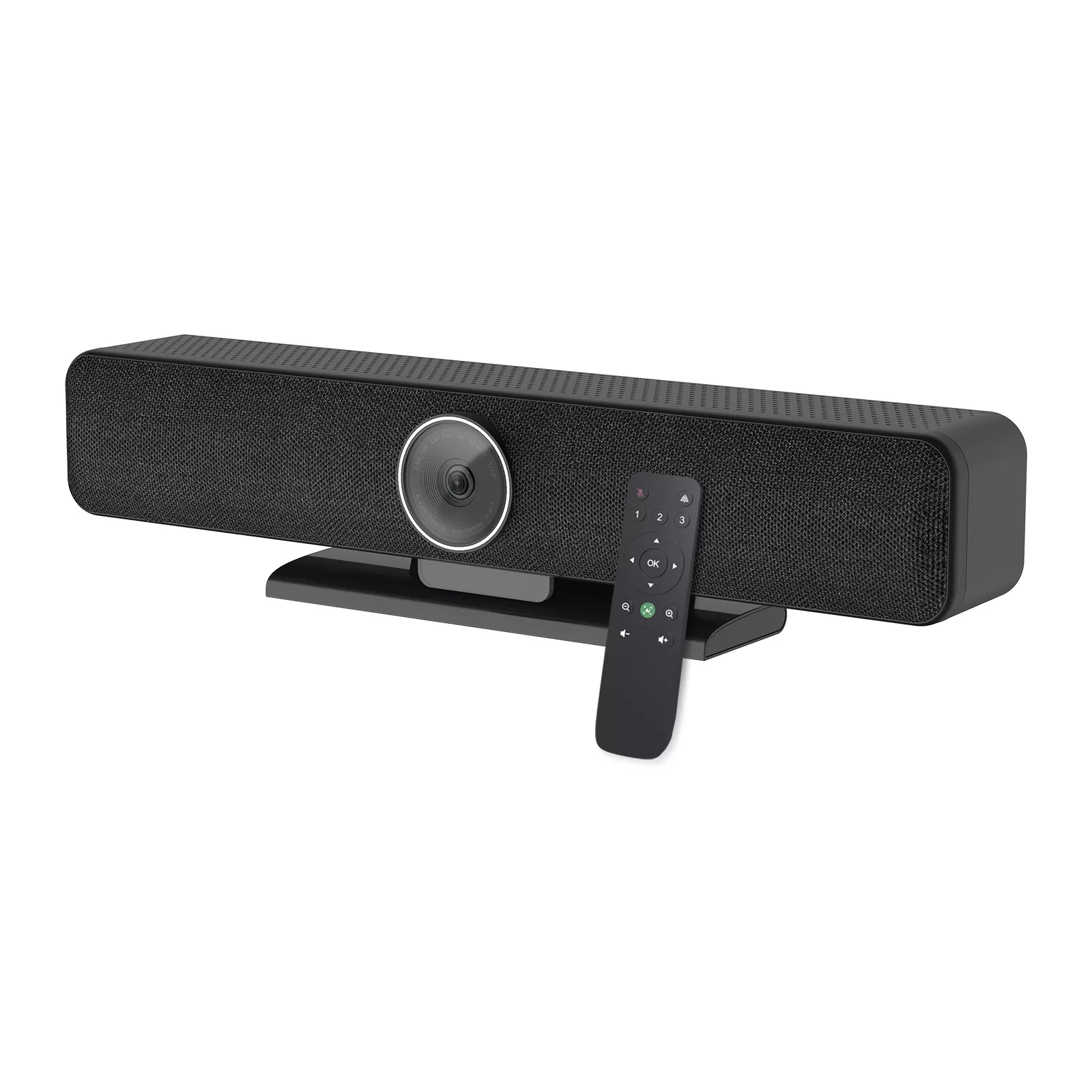

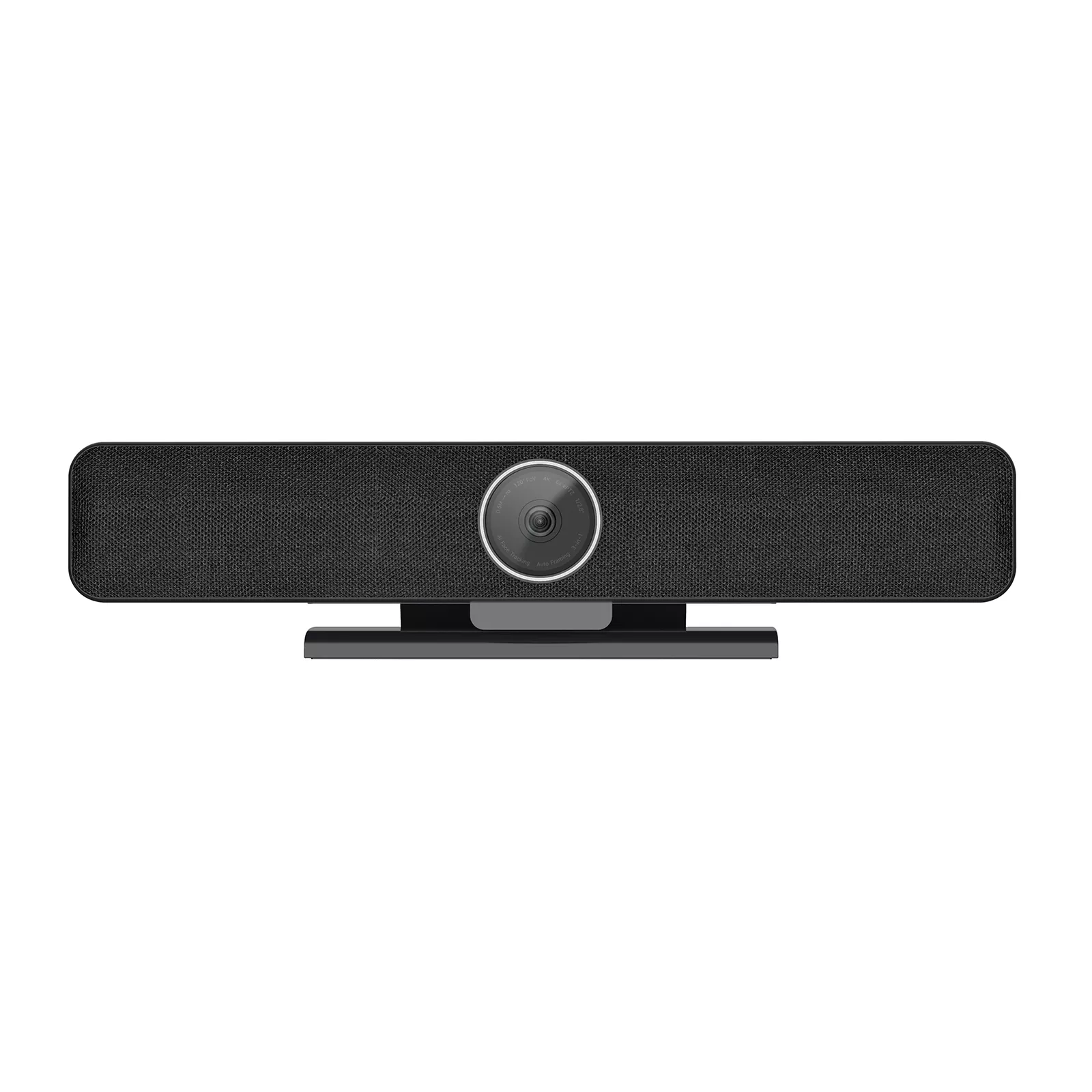

Product display
Product specification
Product model
TB5

Camera - 4K HD camera
- 6x digital zoom - Viewing angle: 120°/90° (optional) - AI intelligent tracking - Camera resolution: 4K at 30fps,
1080P at 30fps, 720P at 30fps, and other formats
Microphone Array - Built-in 4 Mic - Voice pick up range up to radius 5M - Acoustic echo cancellation - Automatic noise suppression
DSP Audio - AEC technology - AGC (Automatic gain control) - Noise Reduction

Speaker
- High-performance 65mm (2.6-inch) driver unit.
- Exclusive suspension system eliminates camera shake and audio interference caused by vibrations.

Physical Interface - 1 x Type-C port - 1 x Power interface - 1 x RJ45 for Extension Microphone - 1 x Security lock slot - 1 x Line in - 1 x Line out

Other - Product size: 400mm X 92mm X 75mm - Warranty: 12 Months - Indicator: Loop Rainbow LED Light Band - Power supply: DC 12V - Warranty: 12 months - Operating temperature: 0‒40°C - Relative humidity: 5‒95%, noncondensing - Storage temperature: -10‒70°C

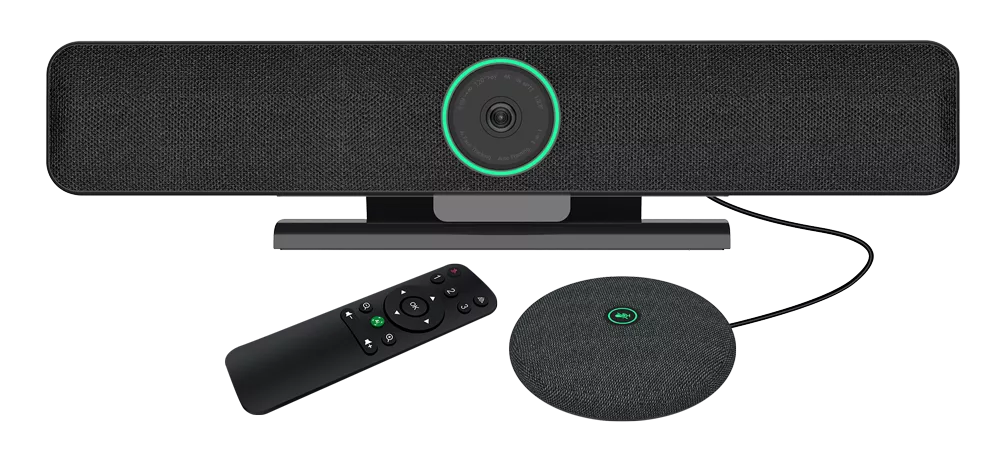

What's In The Box: - 1 x TB5 Video Conference Equipment
- 1 x Camera Remote Control - 1 x 5Meters Cable Extension Microphone(Optional) - 1 x AC Adapter - 1 x Quick Installation Guide - 1 x 5 Meters USB Cable
