AI smart zoom and tracking function


TB3 utilizes the newly developed Ai Smart Zoom and Portrait Tracking function. The camera achieves intelligent tracking with automatic zoom in, zoom out, and pan functions, ensuring the subject remains centered on the screen, thereby enhancing communication efficiency.



High-performance DSP processor


The DSP processor of TB3 has made revolutionary progress in overall performance, power consumption, and core area. It brings a fast and smooth video collaboration experience and fully meets a variety of conference scenarios. Its powerful codec capabilities can easily achieve 1080p video conferencing.






To see all


Equiped with 4K ePTZ camera with view angle 120°,it gives you big picture views with as close to real life quality as you can get. Low noise while taking every details in.

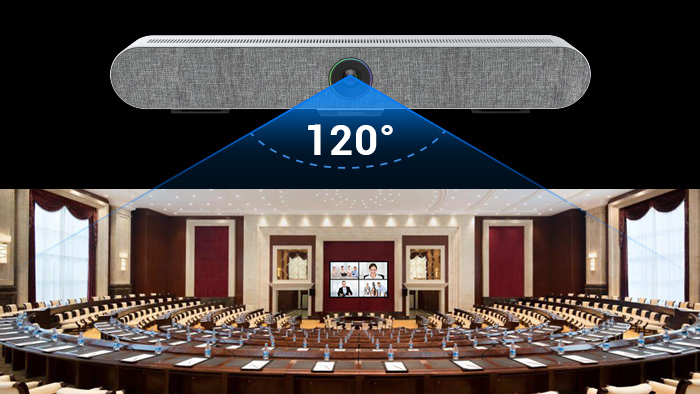

120° Wide-view angle


120° wide view angle, 4k HD lens, All the participants are clearly presented.







Make it happen, instantly


Simple to operate, just a click to join in communication. With help of whiteboard

and document sharing function, just greatly improve our communication efficiency.






Noise cancellation for clearer and more natural sound


Suppress environmental background noise from the keyboard and mouse to ensure the speaker's voice is heard clearly.

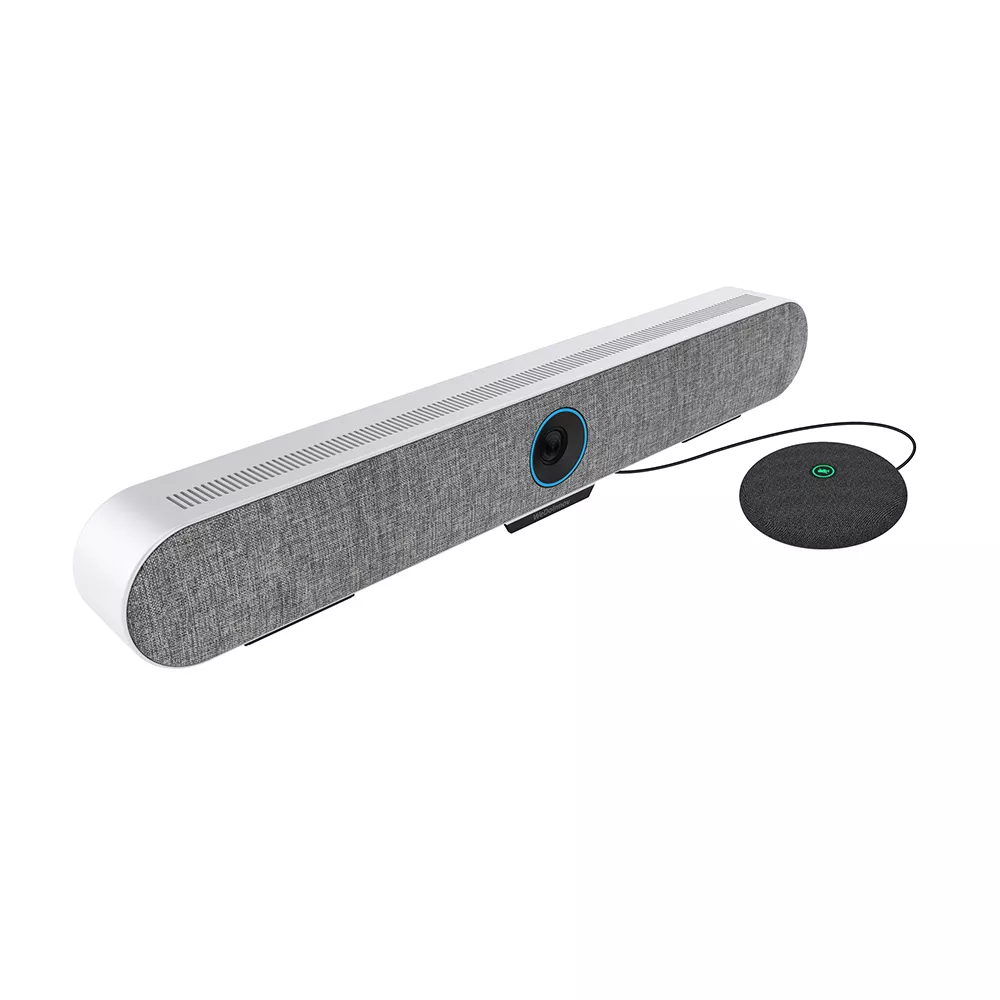

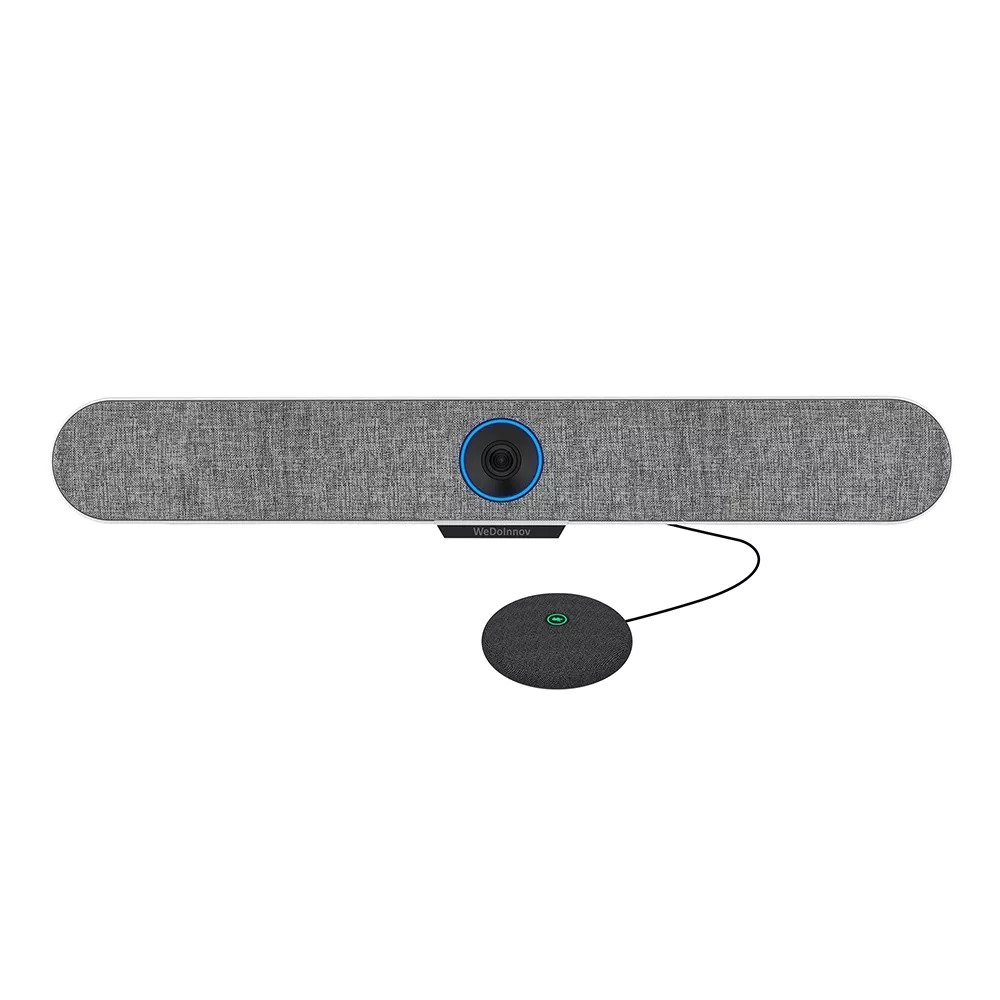

Extension microphone.(Optional)


With extension microphones to enlarge voice pickup range up to 8 meters.

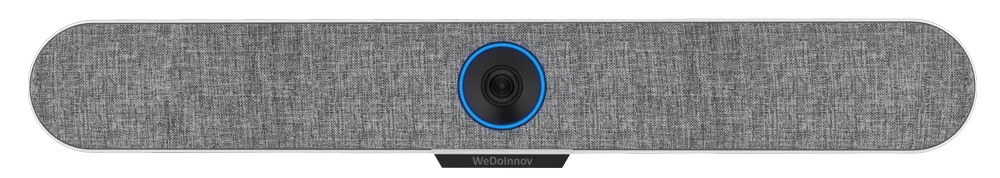

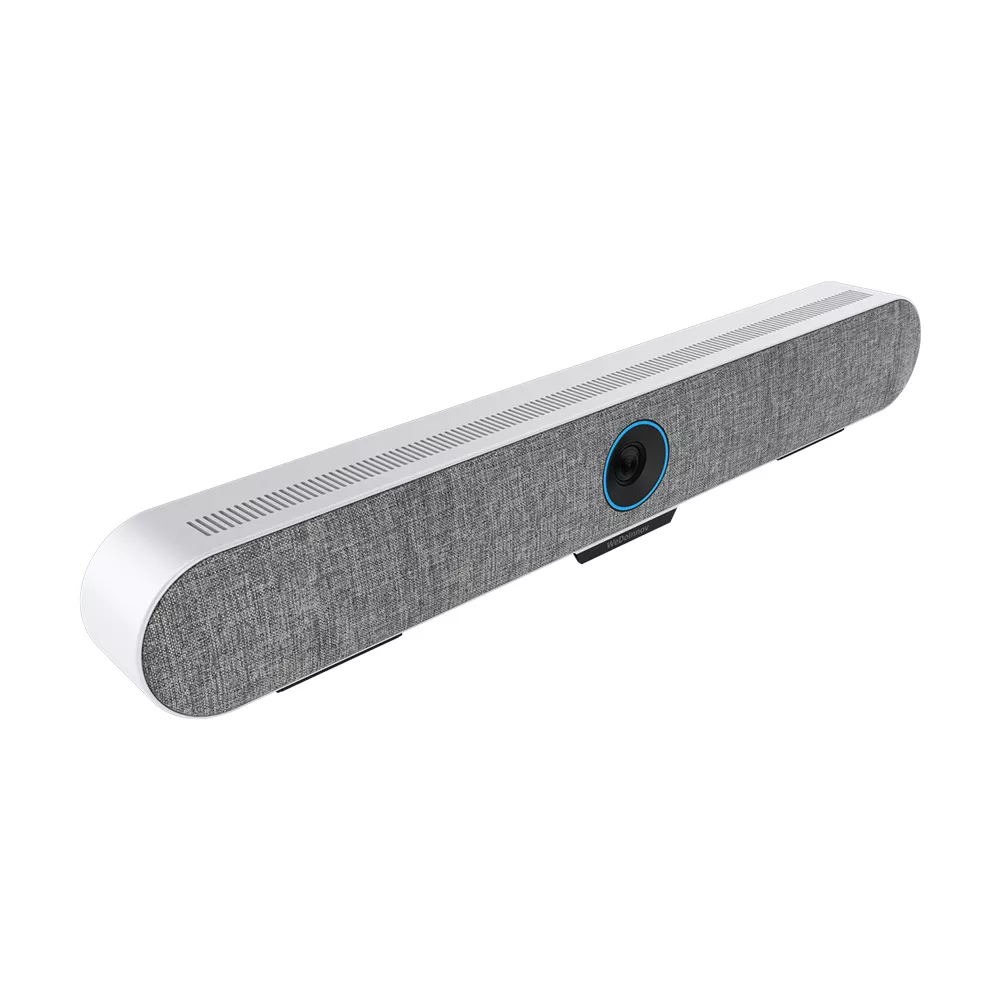

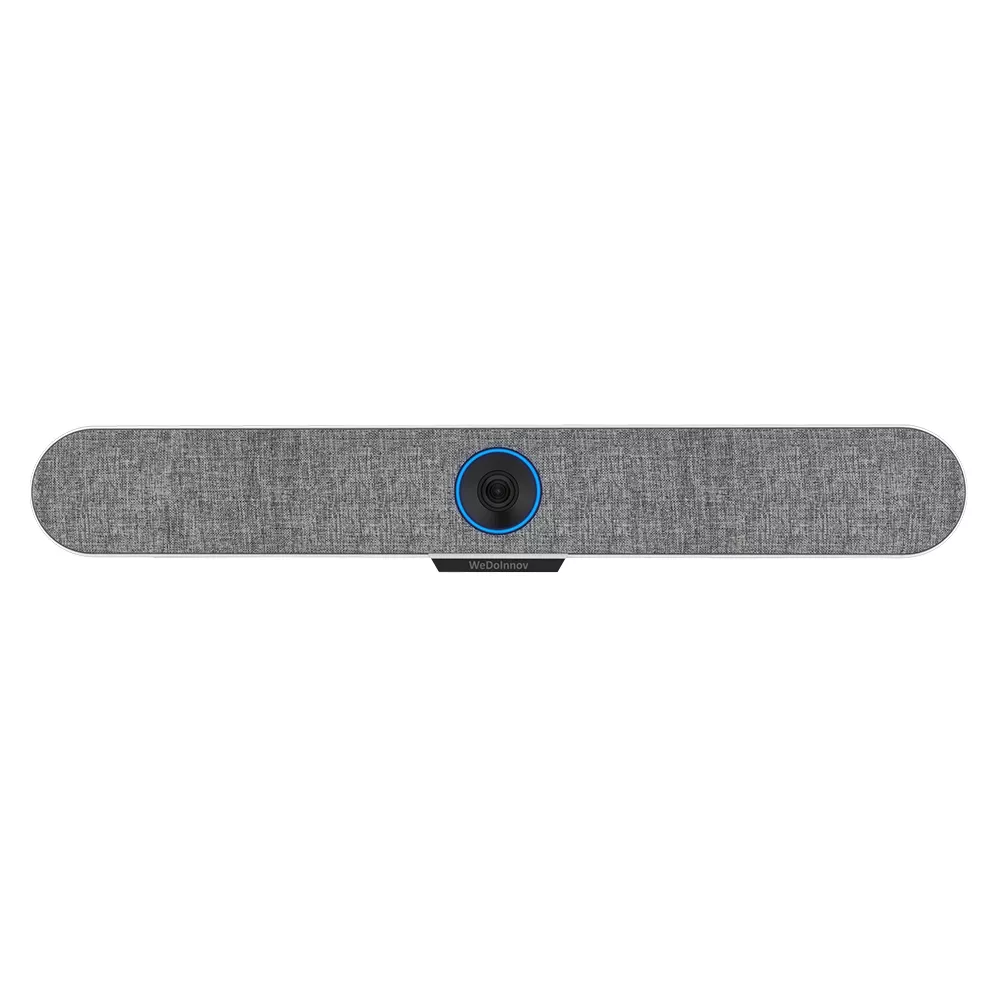

Product display
Product specification
Product model
TB3

Camera - 4K ePTZ Camera - View angle: 120° - Camera resolution: 4k30fps、 1080P30fps、720P30fps, etc.
Microphone Array - Built-in 4 Mic - Voice pick up range up to radius 16’ - Acoustic echo cancellation - Automatic noise suppression
DSP Audio - AEC technology - AGC (Automatic gain control) - Noise Reduction

Speaker
• Built in hi-fi speaker

Physical Interface • 1 x USB 3.0 Type-B port • 1 x Power interface • 1 x 10/100/1000 Mbps Ethernet port
• 1 x Extension microphone(Optional) • 1 x Security lock slot

Other - Product size: 602.25mm X 94mm X 67mm - Wall-Mounted accessories - Indicator: Loop Rainbow LED Light Band - Power supply: DC 12V - Application: Enterprises Video Conferencing, Business Negotiations, remote education and training, Telemedicine and remote medical consultations. - Warranty: 12 months - Operating temperature: 0‒40°C - Relative humidity: 5‒95%, noncondensing - Storage temperature: -10‒70°C
Resources
WeDoInnov TB3 Ai DataSheet EN.pdf
1.9MB
