4K Camera
AI Face Tracking
AI Speaker Tracking
Gallery view
Hi-Fi Speaker
Microphone Array
Noise Reduction
Plug and Play



4K Ultra-HD Camera

Boasts 4K UHD resolution with 4x digital zoom and a

94° ultra-wide viewing angle to cover the entire

meeting space. Enhanced with automatic color

balance technology, it ensures everyone in the scene

is clearly visible.




AI Face Tracking

Combines auto-framing and face tracking

functions to accurately capture the positioning

of people in the meeting scene, delivering clear,

natural images with rich, delicate details.





AI Speaker Tracking

Built-in AI intelligent speaker tracking algorithm

accurately locates the speaker, automatically focuses

on human voices, and achieves synchronized

audio-visual tracking, significantly improving meeting

communication efficiency.




Gallery view

The gallery tile function of the all-in-one AV device automatically incorporates framed and recognized participant images. When paired with sound source tracking, it flexibly adjusts the tile status of the active speaker — balancing layout integrity with quick speaker localization.




Hi-Fi Speaker

Meticulously tuned Hi-Fi speaker with

explosion-proof sound processing for high

frequencies.







Microphone Array

Built-in high-sensitivity microphone array with

precise sound pickup up to 7 meters, easily

covering meeting scenarios.





Easy set up


Easy and flexible set up, compatible with tripod.

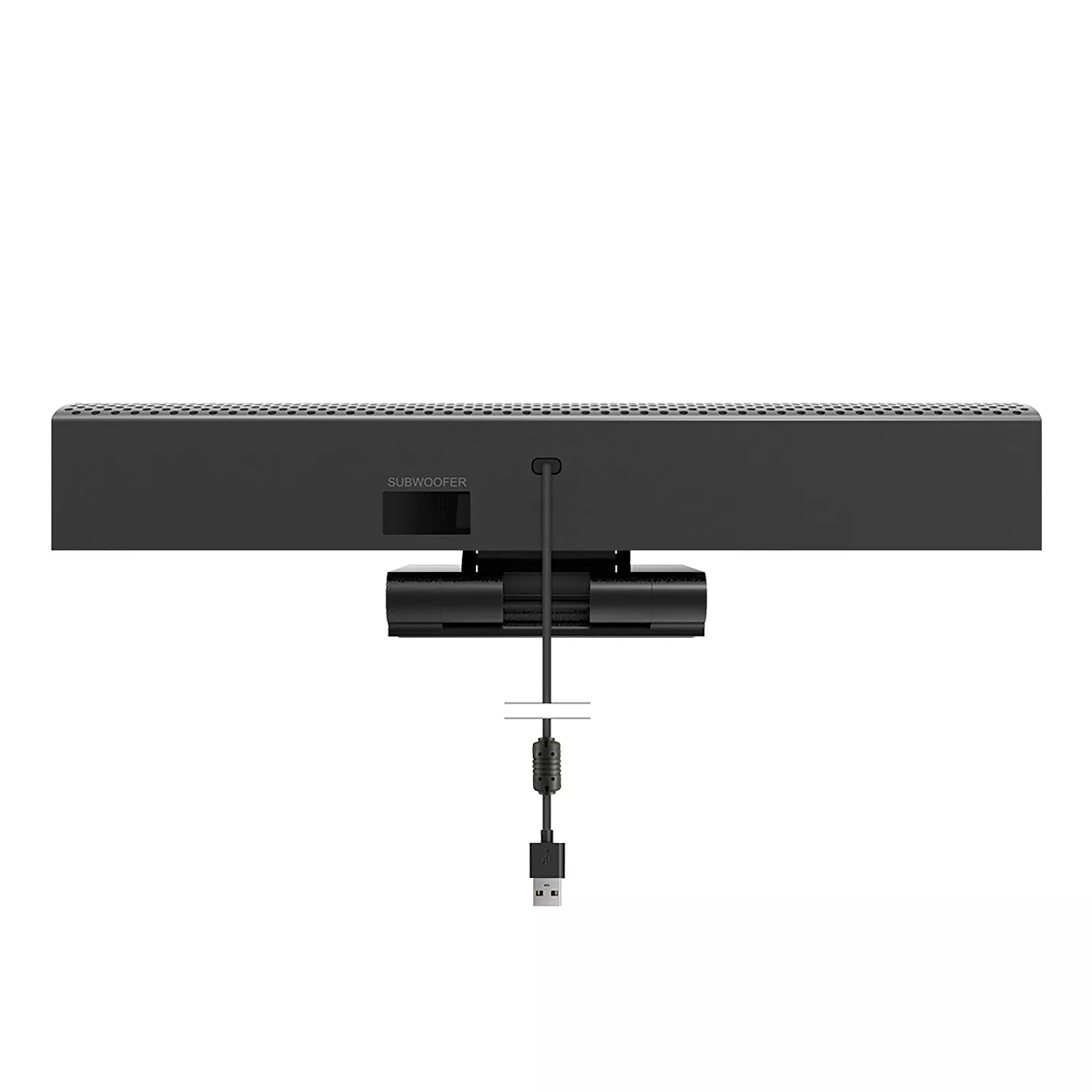

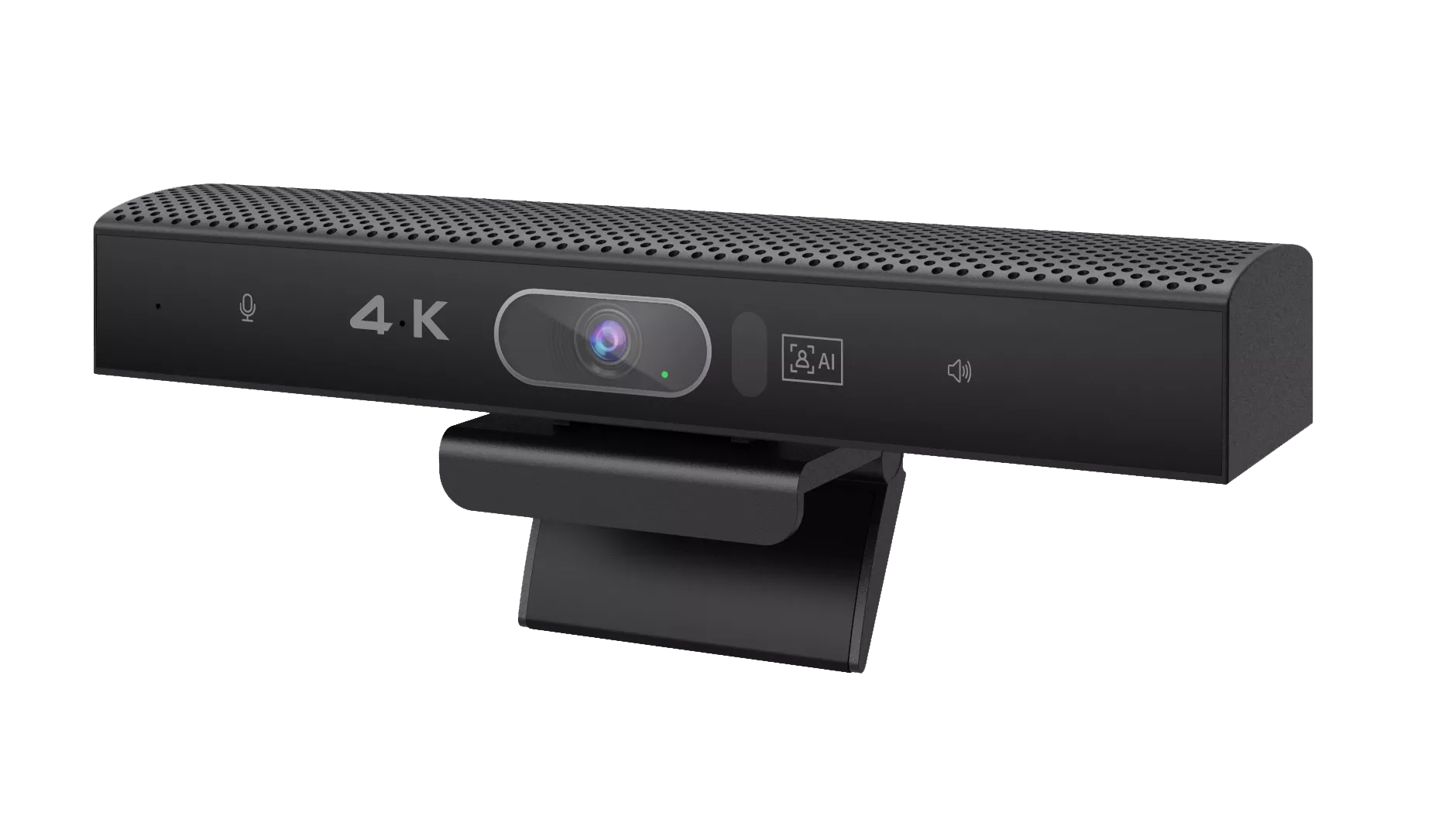

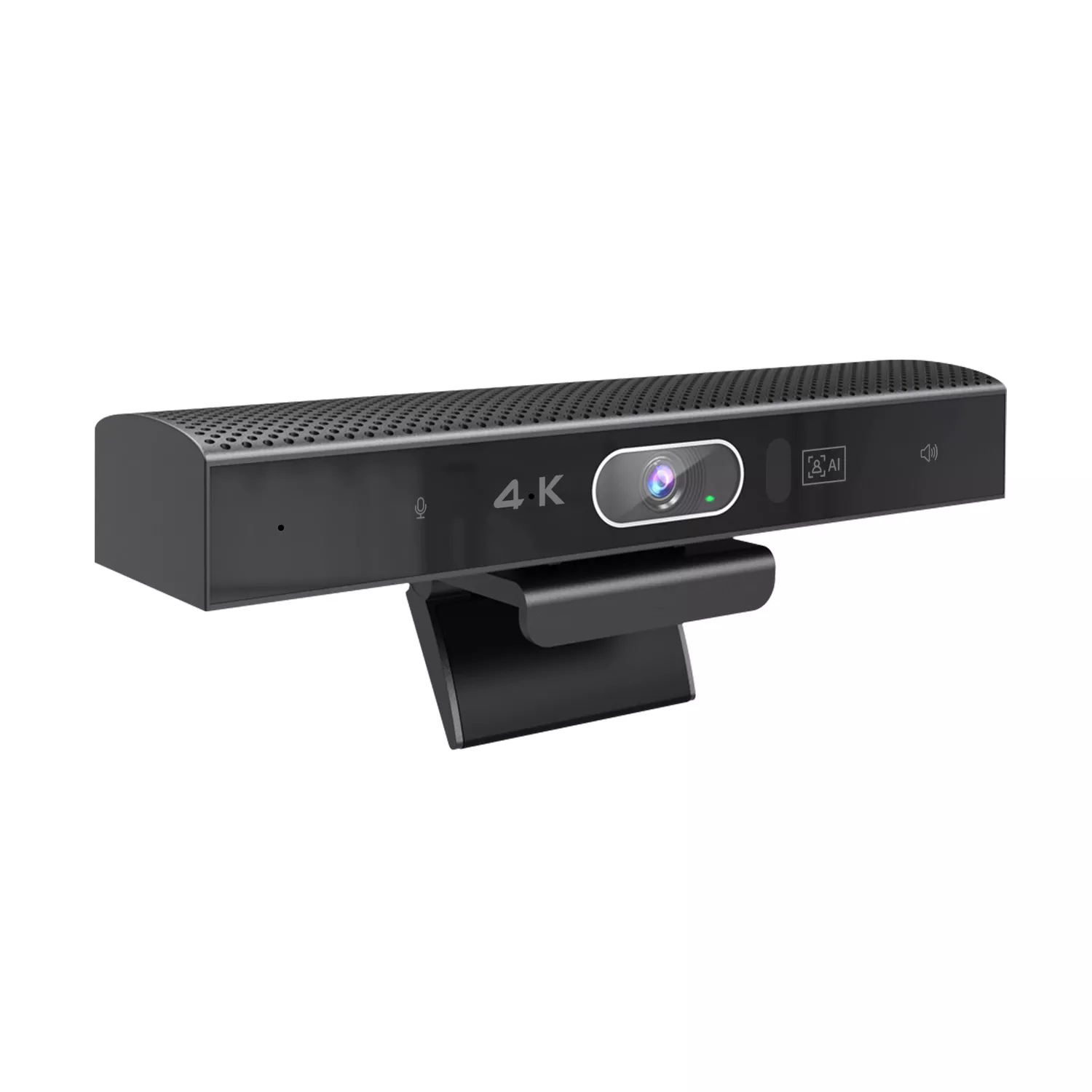

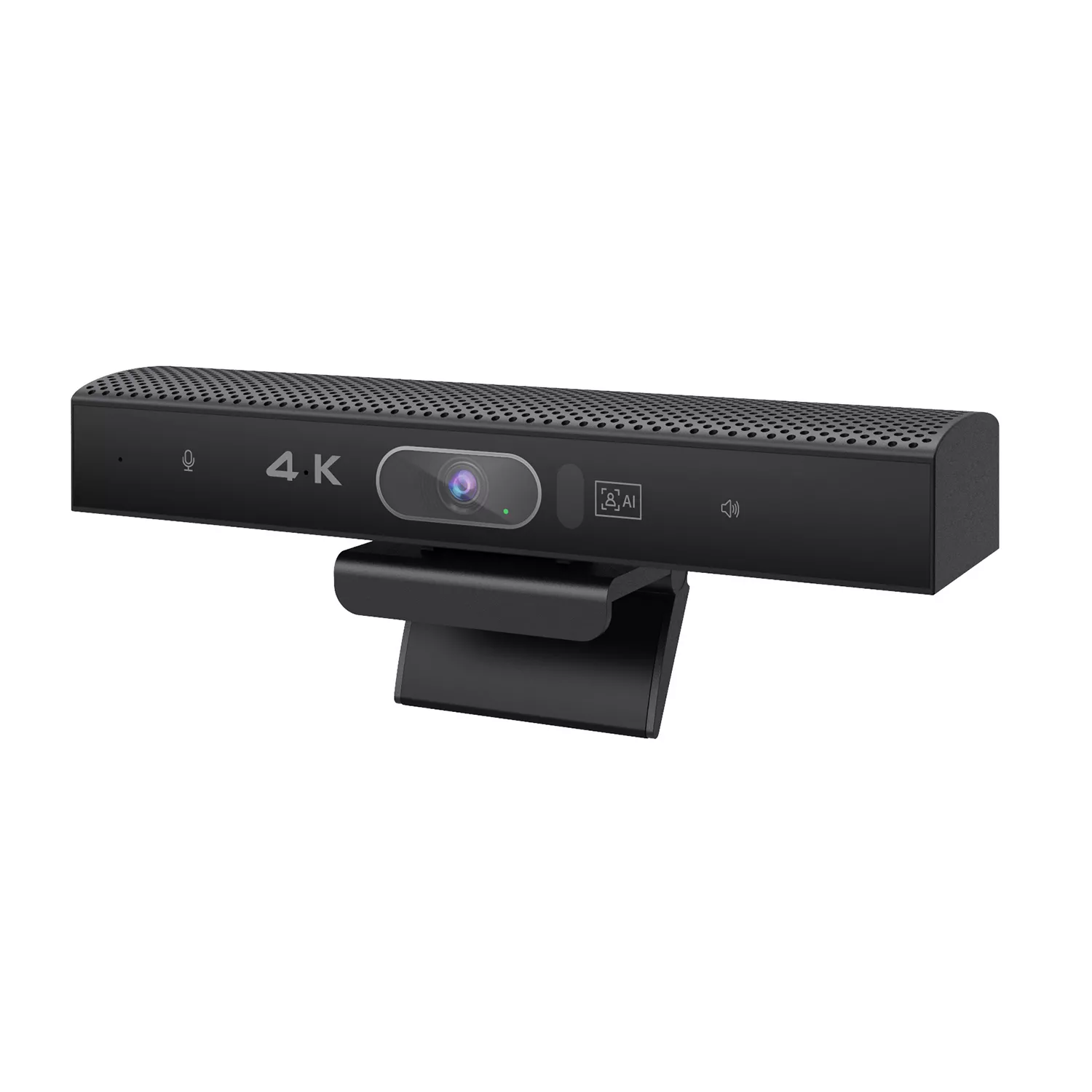

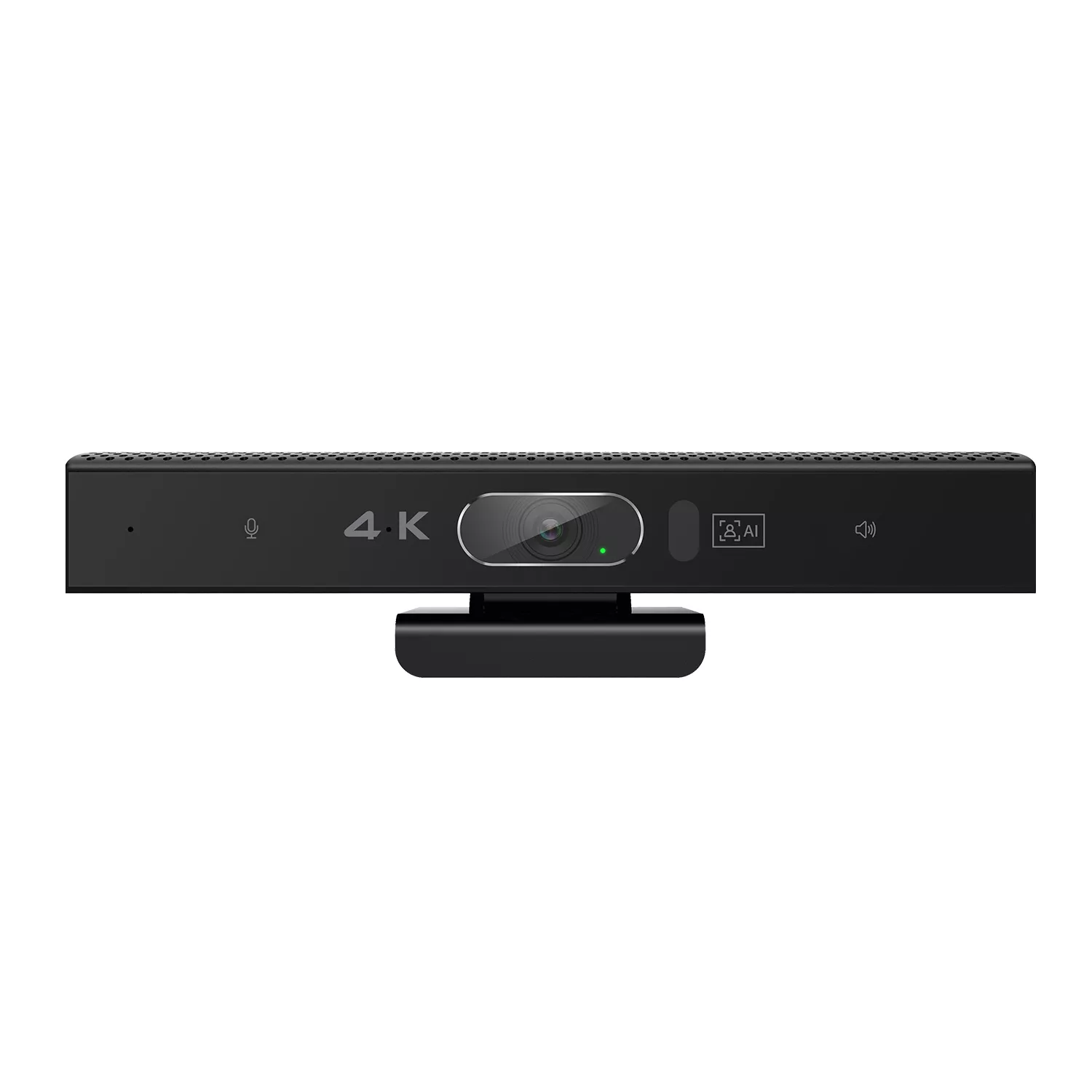

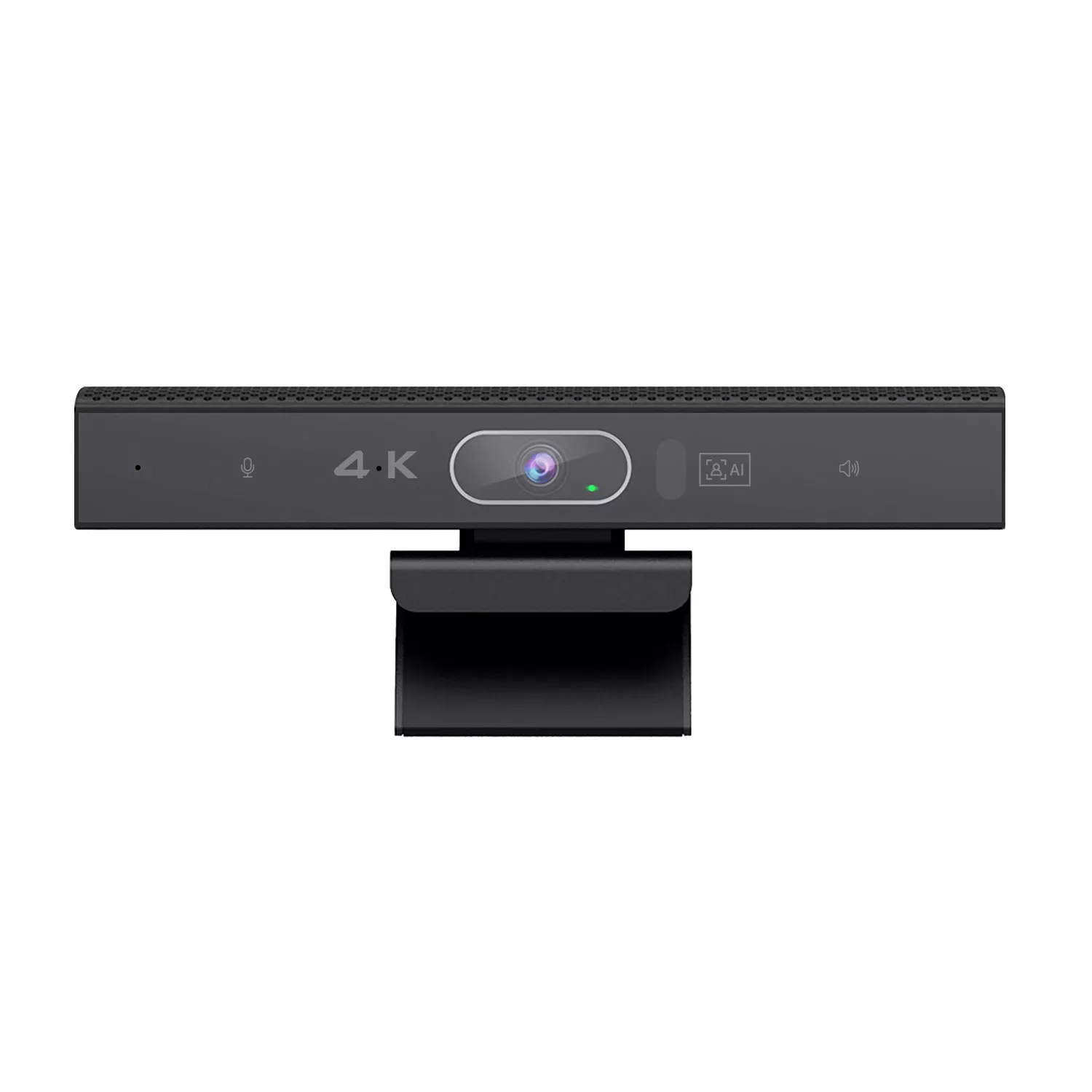

Product display
Product specification
Product model
SeeUp 3R

Full-HD Camera • Sensor Size: 1/3.0”
• Resolution: 8 Megapixels (4K) • Focus: Auto-Focus & Face Tracking • Zoom: 4x Digital Zoom • Interface: USB 2.0 • Video Resolution: Up to 3840*2160/30fps • Image Resolution: Up to 3840*2160/30fps • Viewing Angle:
Diagonal 94° / Horizontal 90° / Vertical 55° • Minimum Illumination: 0.1 LUX • Aperture/Brightness/Contrast: Auto • Minimum Shooting Distance: 50 cm • White Balance: Auto • Frame Rate: Up to 30fps (MJPEG)

Speaker
• 1 x Hi-Fi Speaker

Microphone Array • Polar Pattern: Omnidirectional • Microphone Type: Multi-microphone Array • Signal-to-Noise Ratio (SNR): 64.5dB • Sensitivity: -26dB • Maximum Sound Pressure Level (SPL): 120dB • Frequency Response: 20Hz ~ 8kHz • Pickup Range: 7m
Compatible Systems • Windows® 10, Windows 8, Windows 7, / macOS® 10.10 or above / Chrome OS™ / Android™ v 5.0 or above
Compatibility • Compatible with any supported application, featuring standard USB audio and video drivers.
Package Contents
• 1 x SeeUp 3R Video Bar • 1 x User Manual • 1 x IR Remote Control

Other
• Cable Length: 1.8m • UVC Protocol: Supported • LED Indicator: Included • Mounting Bracket: Included • IR Remote Control: Included • Operating Temperature: 0 ~ 40°C • Relative Humidity: 5 ~ 95% (non-condensing) • Storage Temperature: -10 ~ 70°C
Resources
WeDoInnov SeeUp 3R DataSheet EN.pdf
720.0KB
