4K ePTZ camera
Auto-Framing
Ai Speaker Tracking
Microphone array
Hi-Fi Speaker




Auto-Framing


With Ai auto framing and facial tracking feature, it will follow your movements and always keep you at center stage.



4K ePTZ Camera


4K resolution and 4 times digital zoom, 94° wide view angle with automatic color balance, everyone clearly presented in the scene.



Ai Speaker Tracking


Built - in intelligent analysis algorithm, it will track speaker's voice in real time to frame and keep the speaker at the center of the screen.




Microphone array


Built-in 2 highly sensitive microphone array for 360° voice pickup with radius up to 7m, Wide coverage and clear reception.



Hi-Fi Speaker


Built-in Hi-Fi speaker unit and professional cavity design with inverter tube. It will reduce voice distortion and give more bass which make us feel real.




Easy set up


Easy and flexible set up, compatible with tripod.



USB connection, plug-in and play


Free-drive, pluy in and start your meeting by just a click.Compatible with various of operation systems and video conferencing apps including the one you are using now.

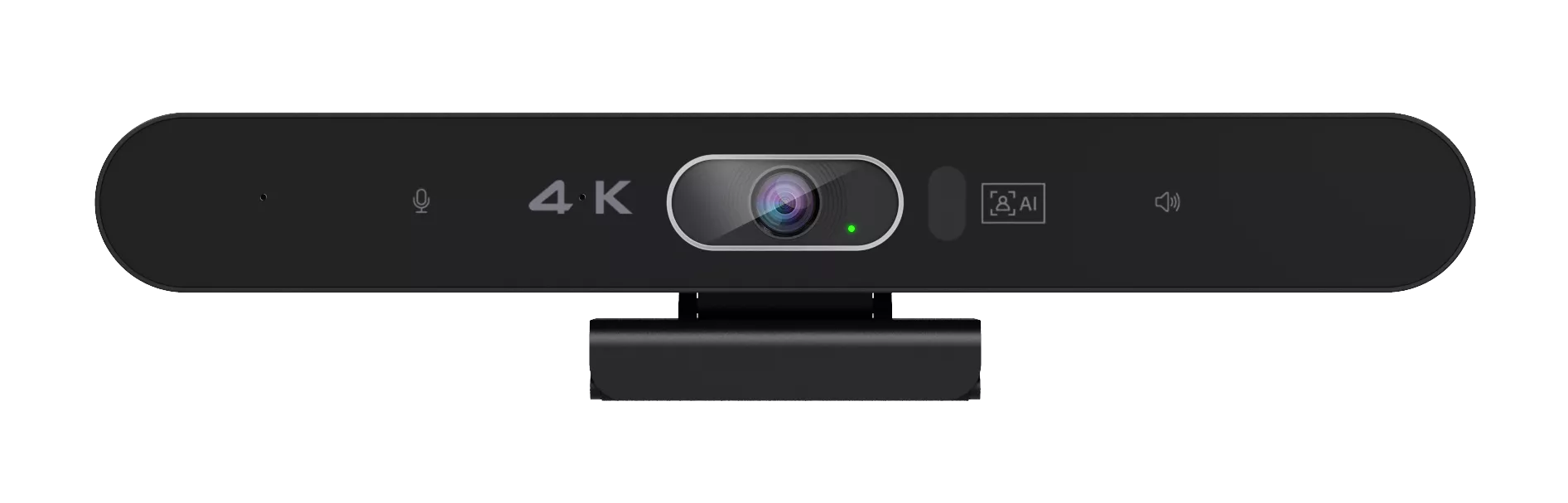

Product display
Product specification
Product model
SeeUp 4C

Camera
• Camera: 4K Camera • Image Sensor: 1/3.0" CMOS • Effective Pixels: 8 Megapixels • Maximum Video Resolution: 3840×2160 (4K) • Video Frame Rate: 30fps@4K • Aperture, Brightness, Contrast: Auto • Zoom: 4x Zoom • Viewing Angle:
Diagonal 94° / Horizontal 90° / Vertical 55° • Minimum Focus Distance: 50cm • Minimum Illumination: 0.1lux; Maximum adaptive highlight illumination: 1000lux • Exposure, White Balance, Shutter Speed: Auto • Support Wide Dynamic Range (WDR) • UVC Protocol: Supported • Focus Type: Fixed Focus • Preset Positions: Up to 3 positions • AI Functions - Automatic Human Framing - Split-screen display with sliced frames for up to 6 participants - Voice Positioning - Multi-speaker Intelligent Tracking
Speaker • Rated Power: 3W
• Peak Power / Max Output Power: 5W • Impedance: 4Ω • Frequency Response: 20Hz~20kHz • Sensitivity: 90dB (1W/1m) • Maximum Peak SPL: 103dB • Channel: 1
Microphone • Microphone: 2 pcs Omni-directional Array MEMS Microphones
• Effective Pickup Distance: 7m • Signal-to-Noise Ratio (SNR): 64.5dB • Sensitivity: -26dB • Maximum SPL: 120dB SPL • Frequency Response: 20Hz~24kHz • Dimension: MEMS Microphone (3.5*2.65*0.98mm)
Compatible system • Compatible Software: Supports mainstream domestic and overseas
conference software including Tencent Meeting Rooms, DingTalk, Feishu, Zoom, Microsoft Teams, Webex, etc. • Compatible Systems: Windows 10/11, macOS 10.10 and above




Basic Specifications of Main Unit
• Dimension (L × W × H): 260 mm × 60 mm × 56 mm
• Weight: 475 g • Warranty: 1-year whole unit warranty

Packaging Specifications
• Dimensions (L × W × H): 282 mm × 98.5 mm × 78 mm
• Weight: 595 g • Qty per Export Carton: 20 units/carton • Export Carton Dimensions:
584 mm × 414 mm × 227 mm • Gross Weight per Carton: 13 kg

Other
• Cable Length: 1.8 m
• Interface: USB 2.0 • UVC Protocol: Supported • LED Indicator: Supported • Mounting Bracket: Included • IR Remote Controller: Included • Operating Temperature: 0 ~ 40°C • Relative Humidity: 5 ~ 95%, non-condensing • Storage Temperature: -10 ~ 70°C

Package Contents
• 1 × SEEUP 4C Video Bar
• 1 × User Manual • 1 × IR Remote Controller


Resources
WeDoInnov SEEUP4C Ai DataSheet EN.pdf
801.3KB
SeeUp 4C User Manual.pdf
409.7KB
