P20F4
4K 20X Zoom Conference Camera
The P20F4 Pan-Tilt Camera is an innovative pan-tilt product equipped with a single high-performance lens. It features a 4K-resolution lens with a 70° field of view and 20x optical zoom, which delivers exceptional detail reproduction and ensures sharp, crisp imagery even for long-distance shooting. The camera is perfectly tailored to meet the shooting requirements across diverse distances and angles in scenarios such as conferences and live broadcasts, providing a reliable and professional visual experience for various professional use cases.
4K PTZ camera
20x optical zoom
70° View angle
Auto Focus
HDMI








20X optical zoom

20X optical zoom，Sleek and intelligent design，Plug & Play USB Connectivity.








Wide viewing angles

Wide viewing angles of view with no video distortion




Accurate, smooth and silent ptz movement


This product supports remote control, enabling accurate rotation of horizontally (-170°~+170°) and vertically (-30°~+90°) with smooth,noise-free operation. Flexible and convenient to use: 10 preset positions can be set via the infrared remote control; up to 255 preset positions can be professionally controlled and configured simultaneously through RS232 and RS485 interfaces. With this efficient control method, you can quickly adjust the PTZ camera’s pan, tilt, and zoom functions, and switch rapidly to preset positions for close-up sequence shooting.





Real-time Autofocus for Sharp, Clear Framing


Equipped with real-time autofocus function, it can quickly adjust the lens focal length according to the shooting target's distance and frame changes. Whether for close-up conference shots or long-distance scene capture, it ensures sharp and clear image details, eliminating the hassle of manual focusing once and for all.








Multiple Installations

Support multiple mount way: available to install on desk, monitor, wall, tripod or up-side down in-ceiling.








Compatible Software

Compatible with all video conference software, like Zoom, Skype, Go TO Meeting; Webex, MS Team, and Bluejeans.

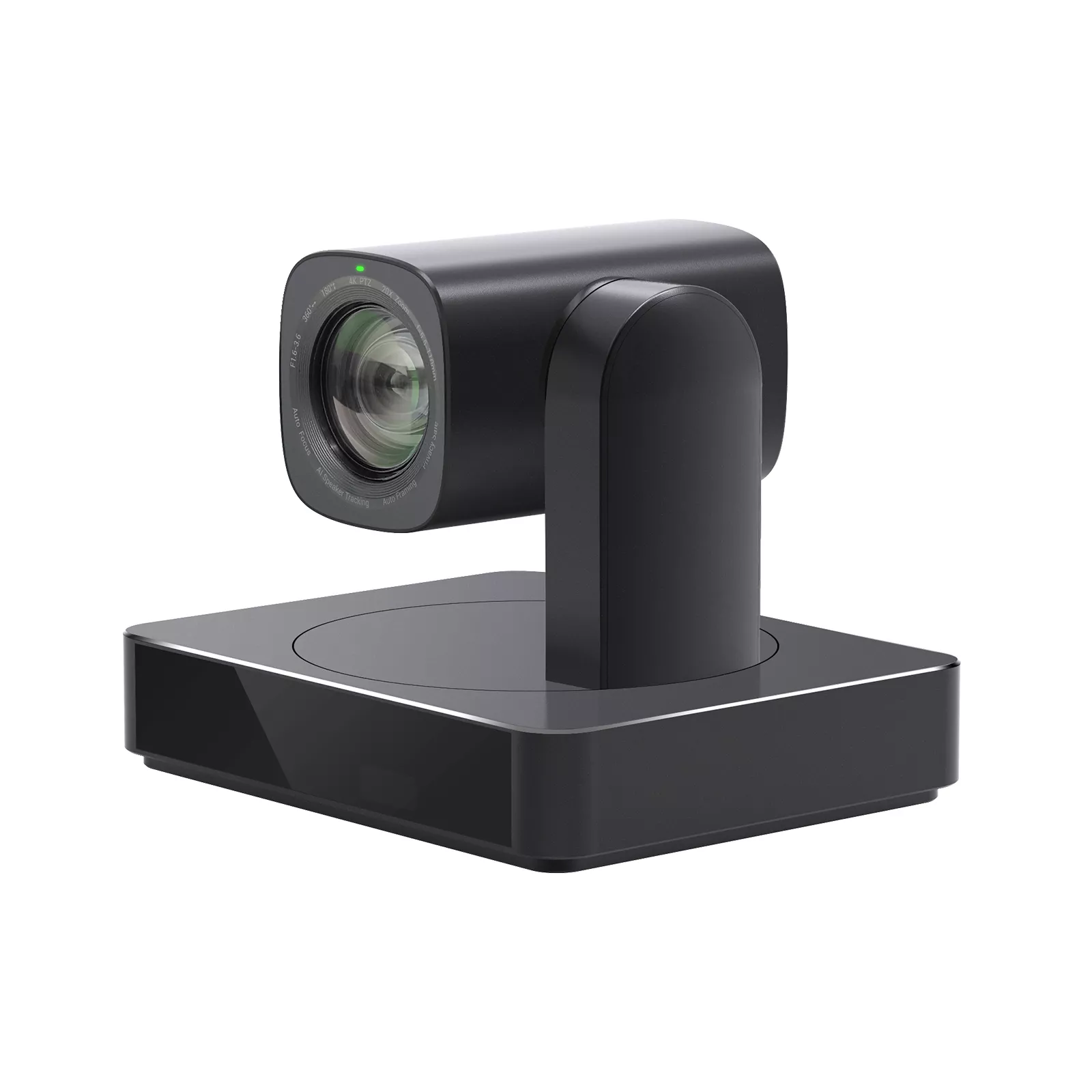

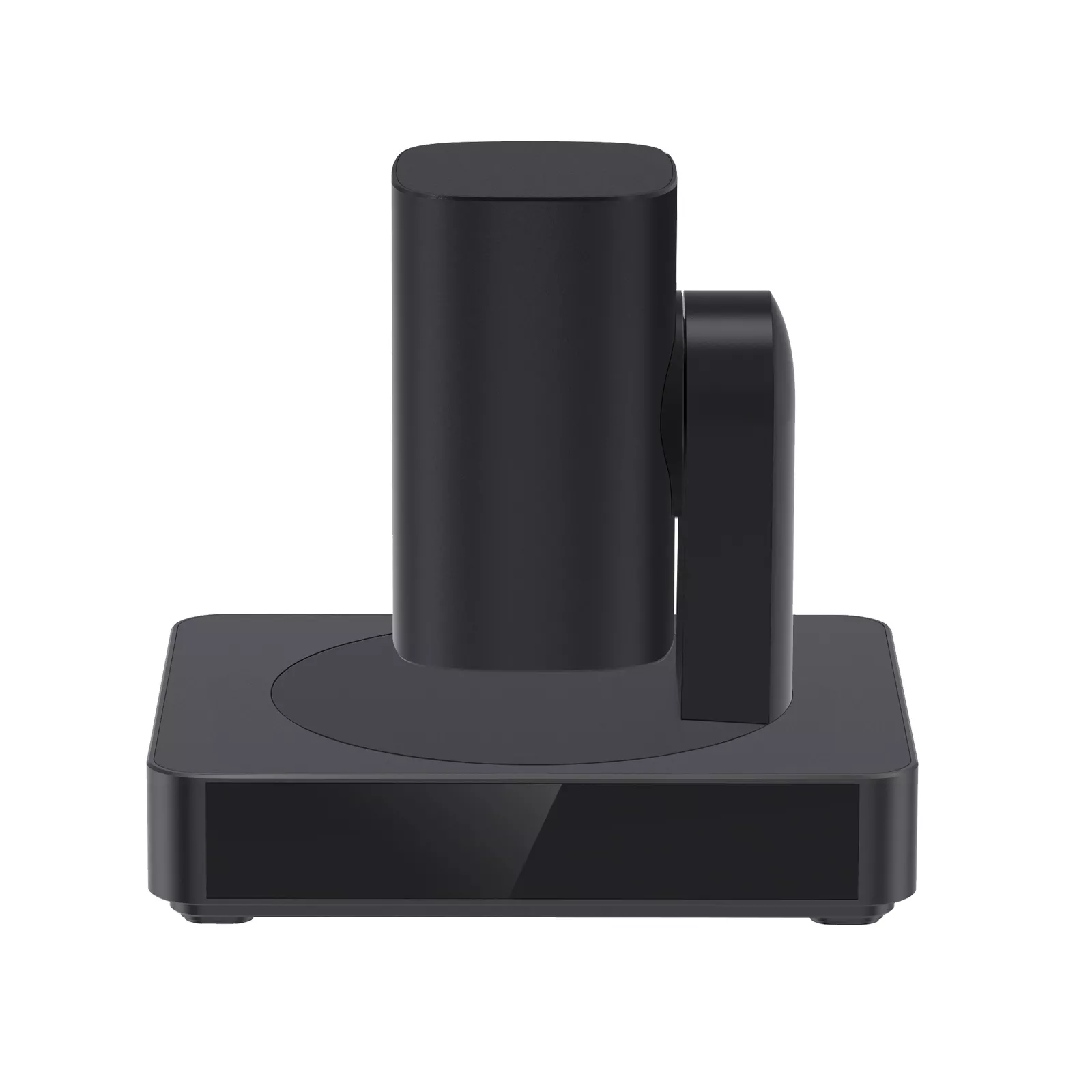

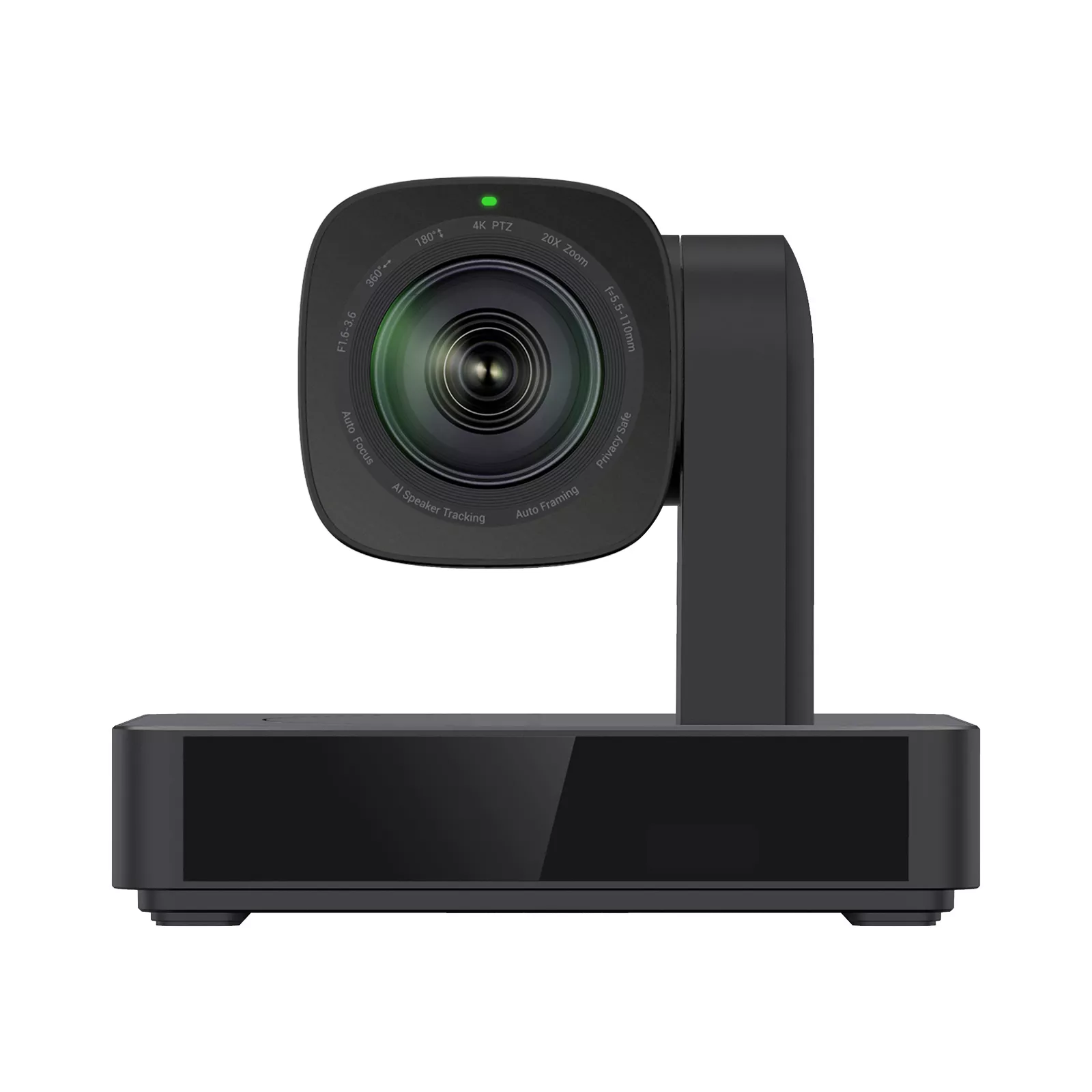

Product display
Product specification
Product model
P20F4
Camera
• 4K/20x high-definition optical zoom
• Video out: 4K 30FPS; 1080P
60/50/30/25/59.94/29.97FPS；720P 60/50FPS
• Focal Length:F=5.4-110mm F=2.0 • Automatically frame portraits
• View Angle:70 degree • Preset Position:IR Remote-controller supports 9 presets,PELCO Control Protocal supports 256 presets.
• Pan/Tilt Movement Range: • Horizontal Rotation: -170°~+170° • Vertical Rotation: -30°~+90°
• Control Terminal: RS-232, RS-485 • Control Protocol: VISCA, RS-232, RS-485

• Video Output: USB • Remote control: Yes
• Decoder: Built-in decoder

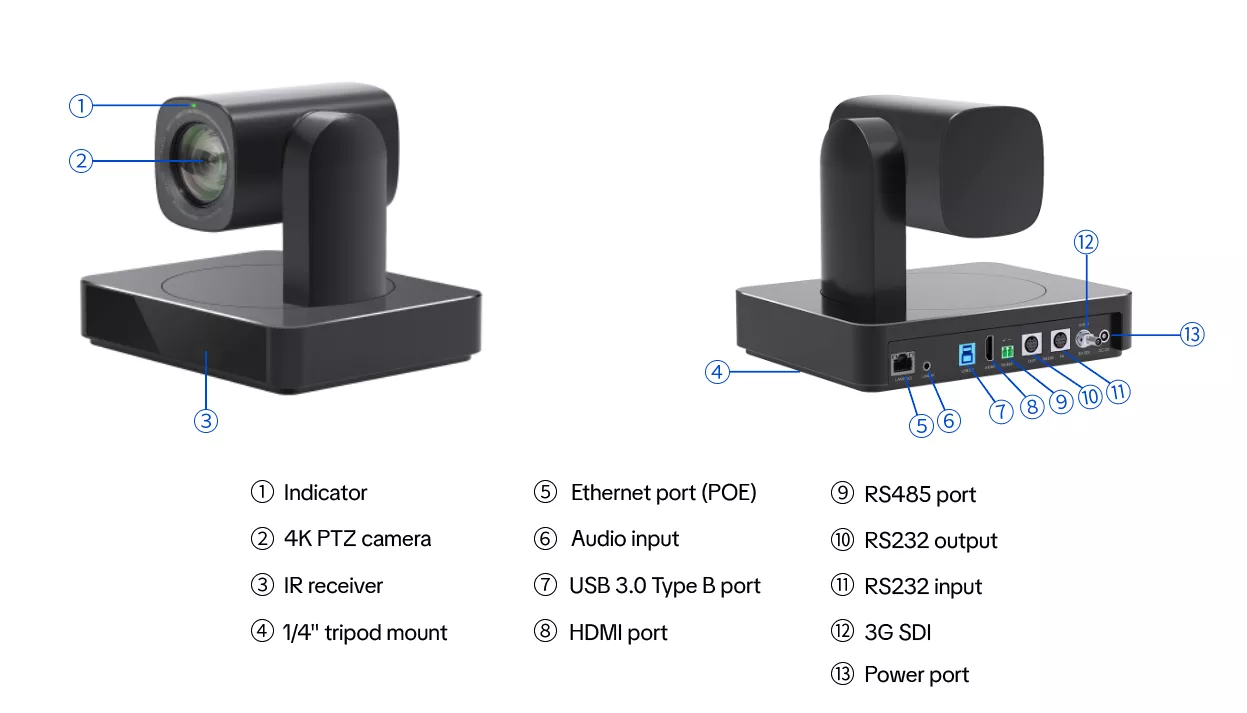

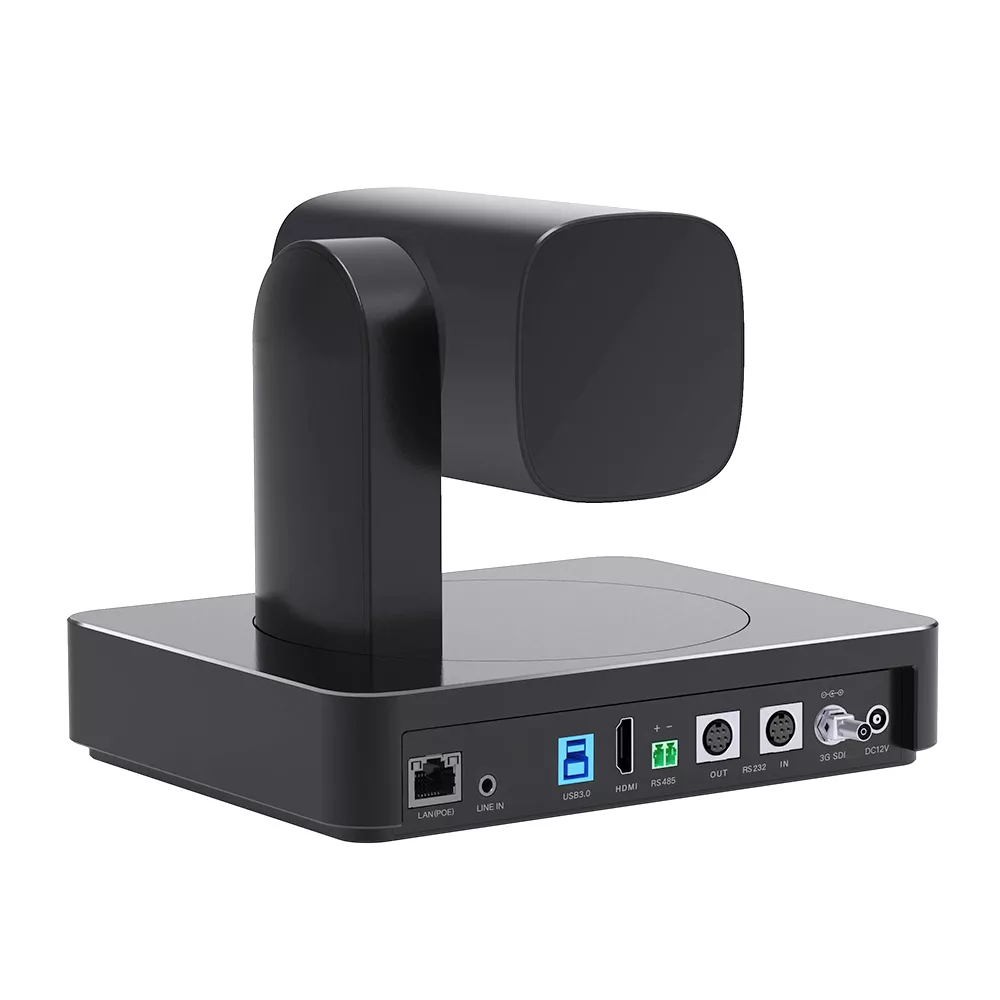

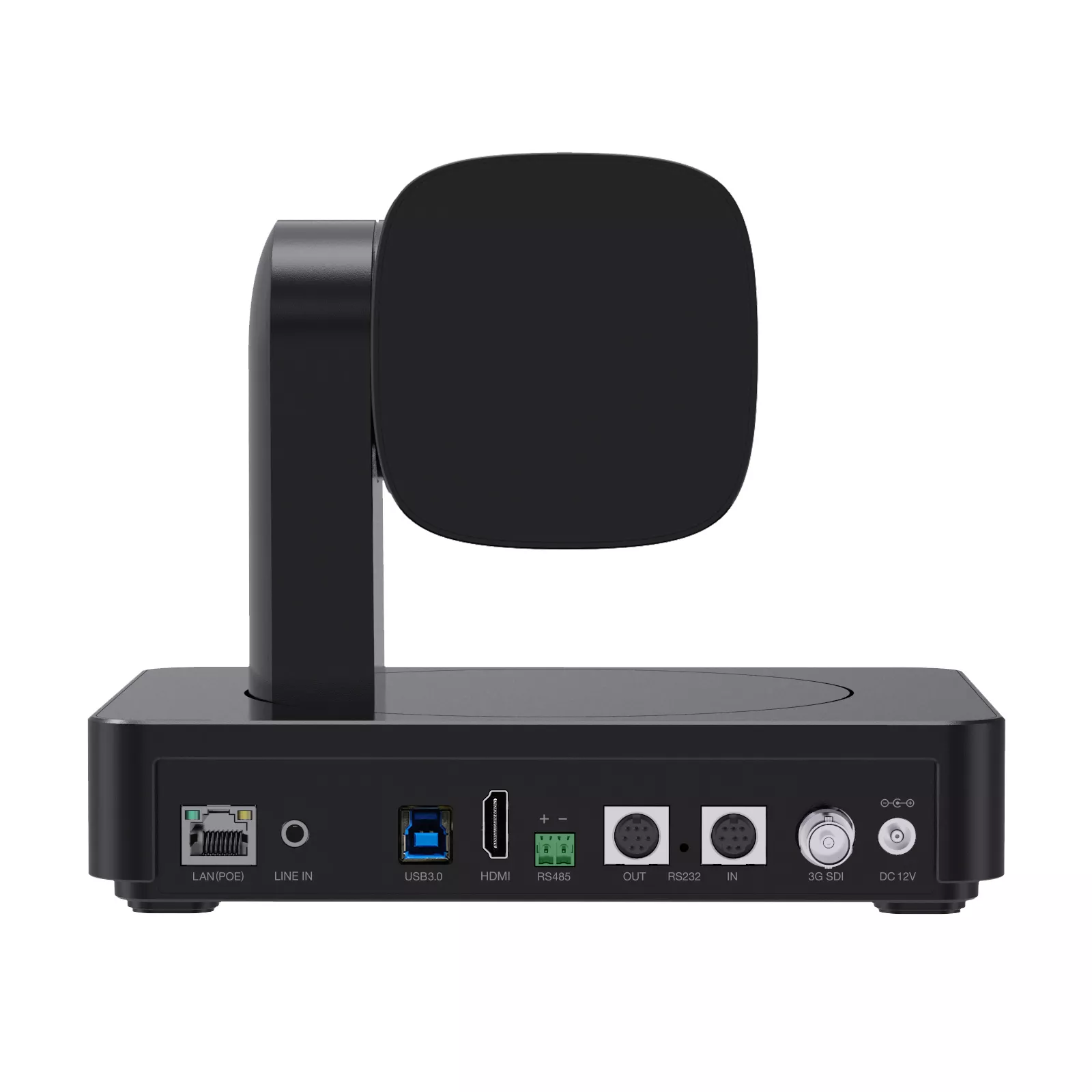

Interface
• 1x Ethernet port(POE)
• 1x Audio port • 1x USB3.0 Type B port • 1x HDMl output • 1x RS232 output • 1x RS232 input • 1x RS485 port • 1x 1/4 UNC threaded hole • 1x 3G SDl port • 1x Power port
Other：
• Wall-mounted shelf：Yes
• Installation: Support desktop, Tripod, Wall mount and ceiling mount • Video Compression Format:YUV,MJPEG,H.264 • Accessories: DC 12V power adaptor,IR remote control, manual,USB 2.0 cable, ceiling brackets and screws • Dimension: 200x160x160mm
• Work Temperature: -10°~50° • Work Humidity: -20°~60°
