WeDoInnov HD9Pro is an enterprise-level video conferencing endpoint designed for small to medium conference rooms, which is cost-effective and simple to deploy. It provides an efficient way for enterprises to replace chat-based consumer-grade communication tools, and greatly improves collaboration efficiency.

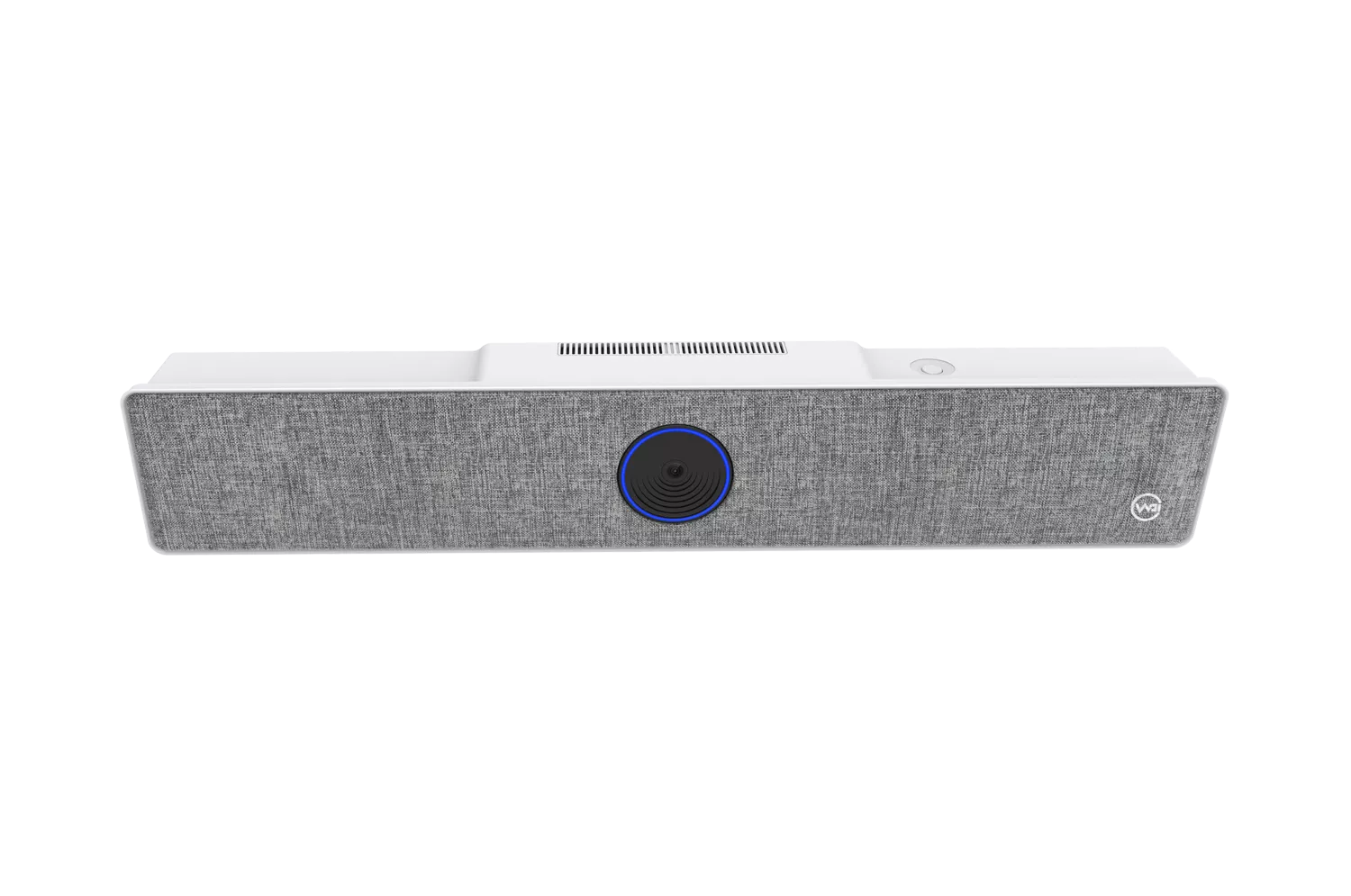

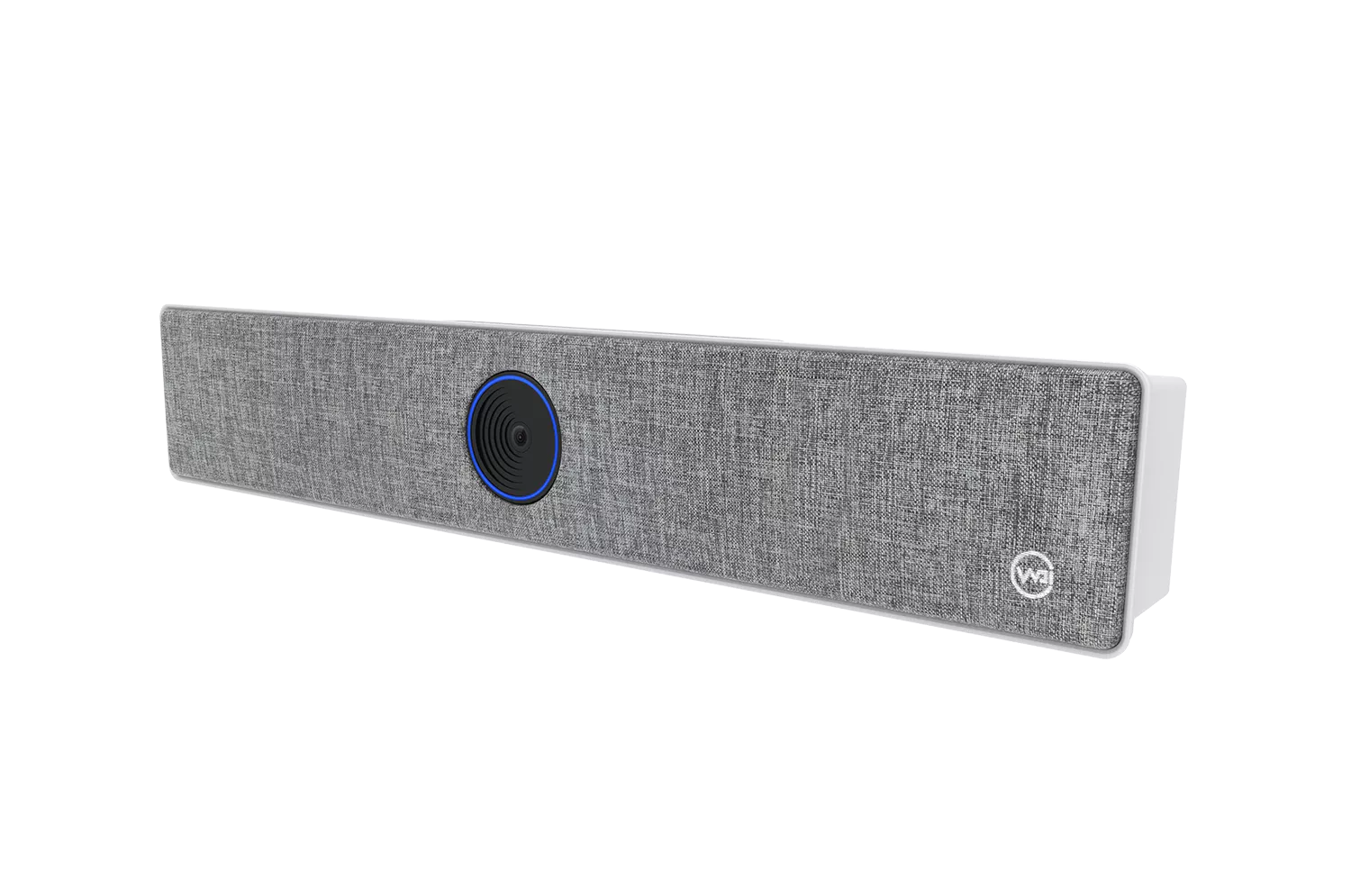

HD9Pro integrates camera, codec, speaker and microphones into one single device to provide users with unparalleled video and audio experiences. It's built with 4K ultra-HD image sensor and 108° super-wide field of view plus the advanced ePTZ camera technology, which allows everyone in the conference room to be presented clearly.

The integrated audio is designed for the size of small to medium conference rooms, providing users with professional and satisfactory audio performance. Two beamforming microphones and high quality speaker help ensure that the audio will be just as exciting as video during video conferencing. In addition, the optional expansion microphone can meet different room configurations needs, ensuring everyone will be heared.

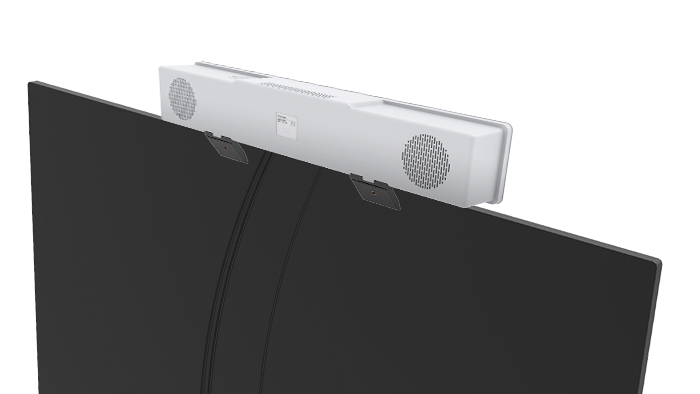

HD9Pro integrates with open Windows 10 operating system and is compatible with any Windows-based office and collaboration software, or cloud services such as Skype for Business, Zoom, WebEx, etc. The compact and all-in-one design reduces complicated connections of cables to keep desktops clean, at same time, it makes deployment and use extremely easy and simple.
  • WeDoInnov HD9Pro at small / huddle room

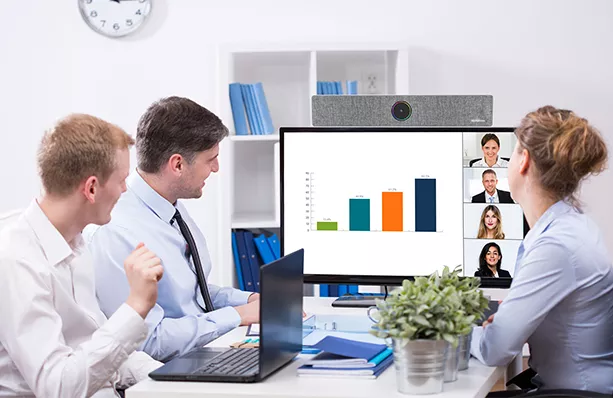

    WeDoInnov HD9Pro at small / huddle room
  • WeDoInnov HD9Pro at medium room

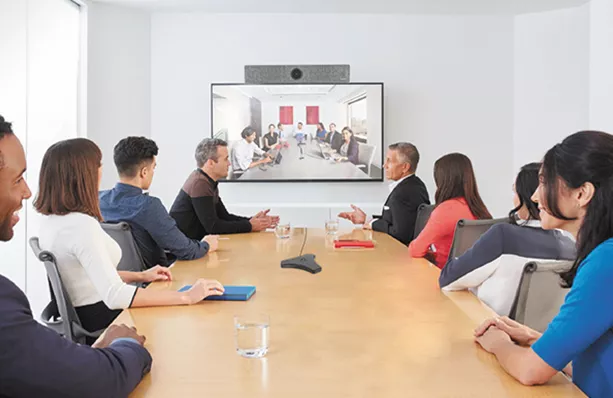

    WeDoInnov HD9Pro at medium room

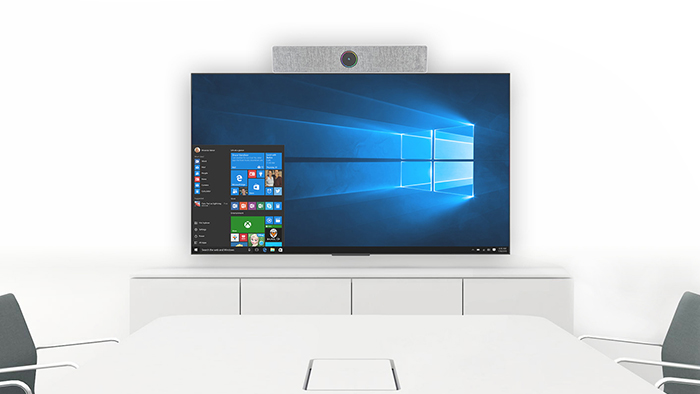

Windows 10 based powerful codec for high quality video conferencing


Integrated Intel i5 processor, powerful codec capability to reach 1080p video conferencing easily. Based on Windows 10 operate system, HD9Pro is compatible with almost any Windows- based video collaboration application, including what you are already using such as Skype for Business, Zoom, WebEx etc.

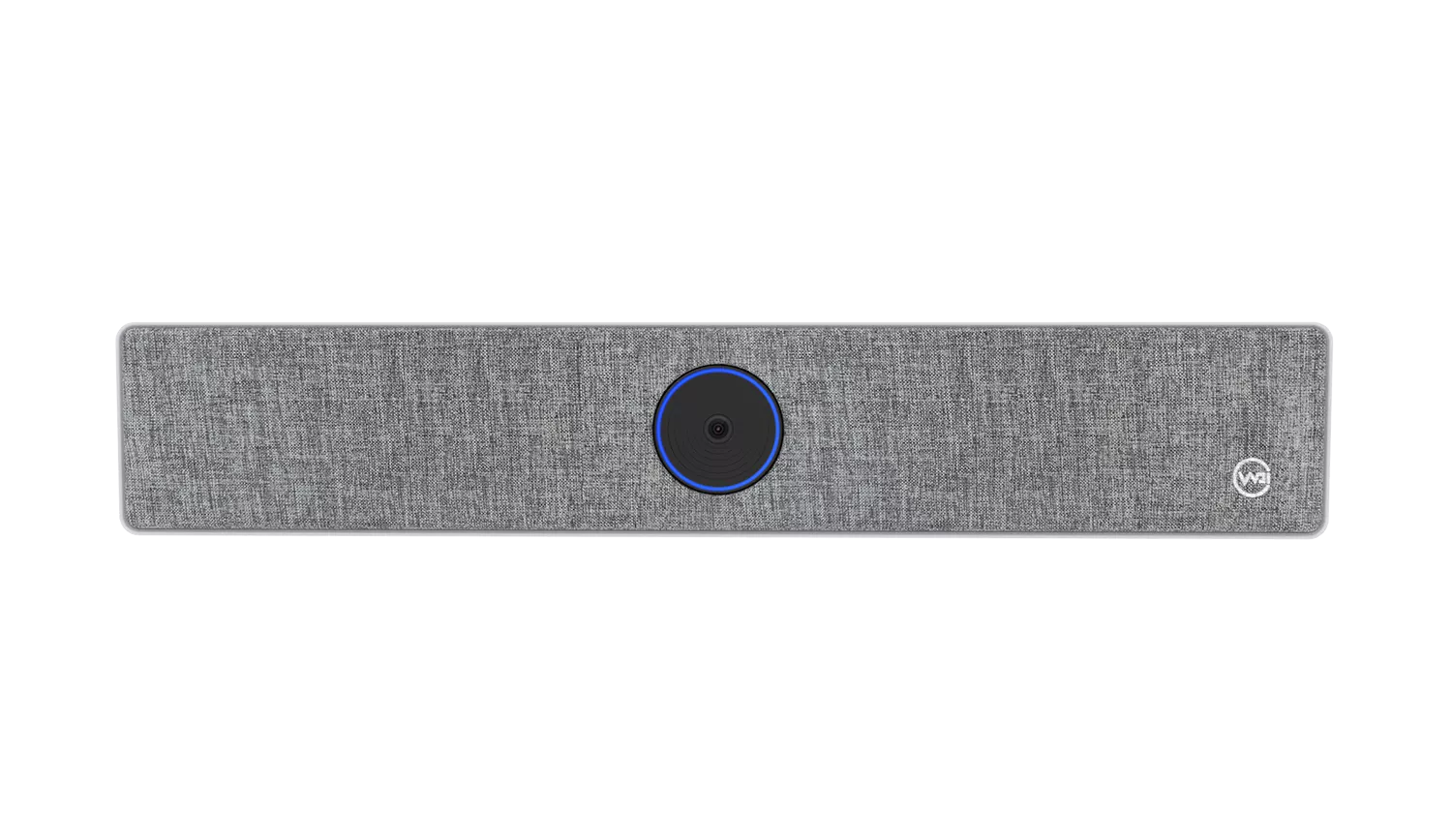

4K ultra HD camera with super-wide field of view


HD9Pro delivers superior video quality for small to medium conference rooms. The 108-degree wide field of view will take everyone into the scene including attendees sitting at sides of the camera. 4K ultra high-def image sensor provides sharp clarity and it supports 4x digital zoom and pan/tilt, that presentations can focus on important details to be clearly shown.

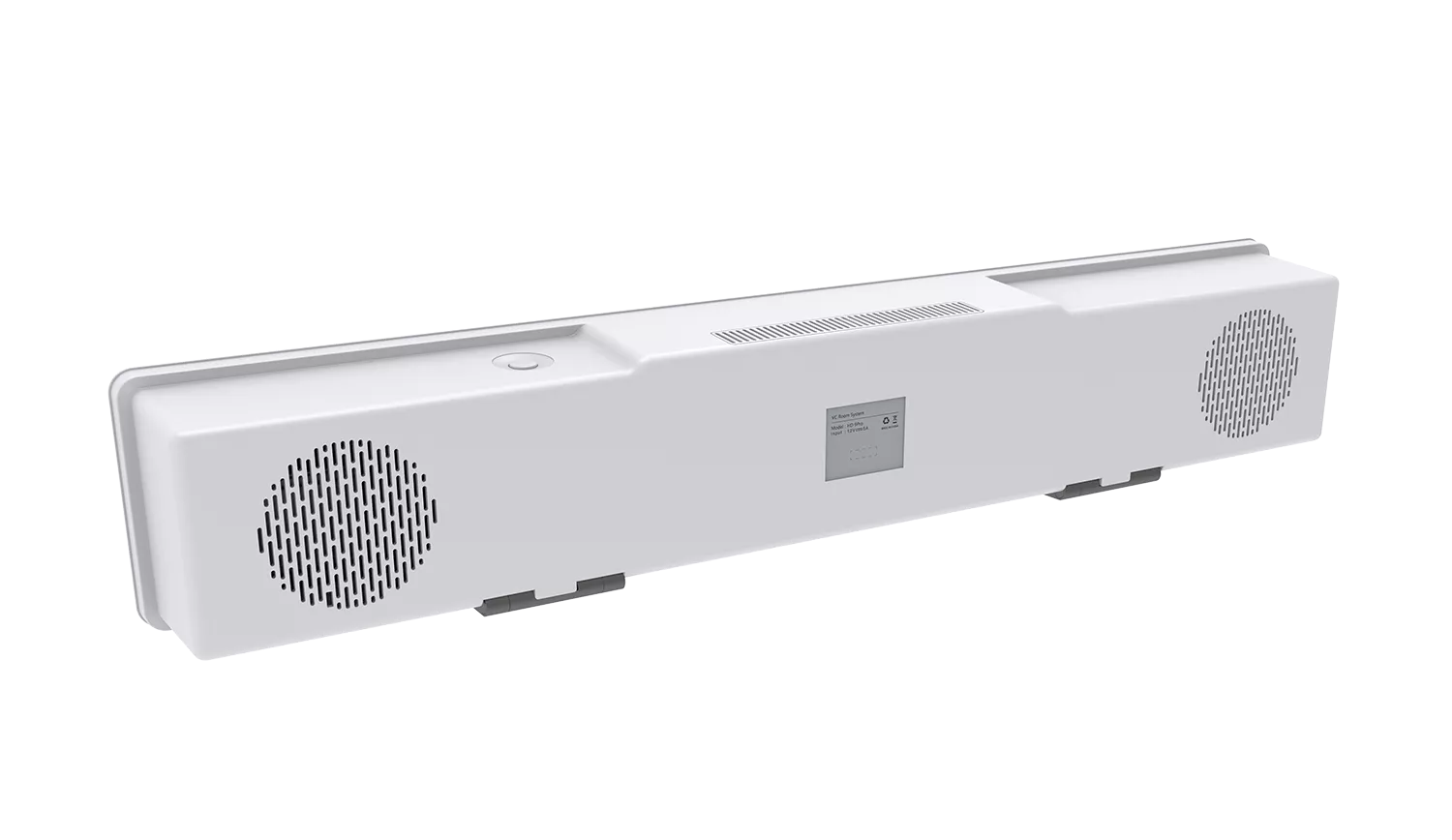

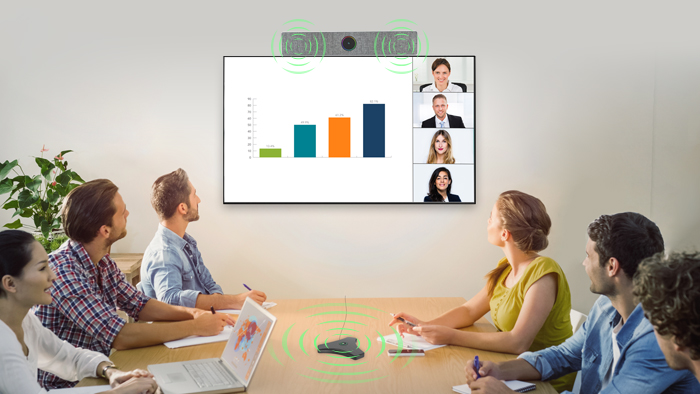

Clear voice with Beamforming microphone arrays and high quality speaker


The HD9Pro's integrated audio device is optimized for small to medium-sized conference spaces, providing exceptional sound effects. Two beamforming microphones and high quality speaker ensure every participant hear and be heared clearly. And expansion microphones to help expand audio coverage is also optional.

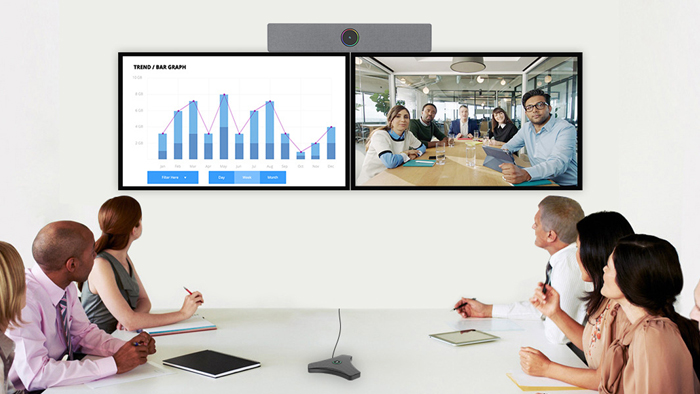

Support dual screen display, video collaboration is more efficient


HD9Pro integrates a rich set of interfaces, including

the connection of two displays. One shows the

conference video while the other shows the sharing

content. Full screen displays ensure video image and content of presentations are equally shown with

high quality and deliver more efficient and

professional video collaboration.




As professional as dual screen output


With built-in dual HDMI output ports,it supports screen extension and copy, one for people video displaying, one for content sharing. The more professional video collaboration improves a lot for teamwork efficiency.



Product specification
Product specification
Product model
HD9pro

System Configuration - Windows 10 Pro - Intel i3-7200U processor, 2.80 GHz - RAM: 8GB, DDR4-2400 - ROM: 64GB SSD
Full HD Camera - Resolutions: 4K@30fps,1080p@30fps, 720p@30fps, 480p@30fps, 240p@30fps - 12.35 MP image sensor - 1/2.3" CMOS - 4x digital zoom with ePTZ - Horizontal field of view: 108° - Vertical field of view: 70° - Image output format: MJPEG,H.264 Baseline Profile / Main Profile / High Profile - VCM continuous AutoFocus - Auto exposure and white balance - UVC 1.1 compatible
Microphone - Built-in 2 beamforming microphone arrays - 16ft / 5 meters voice pickup range - Expansion microphone (optional) - Acoustic echo cancellation - Automatic noise reduction - SSP, De-Reverberation, DRC
Speaker - Built-in 1 high-quality speaker - Frequency response:150 Hz to 9kHz - Amplifier power: 4W - Max output level SPL: 96 dB

Physical Interfaces - 4 x USB 3.0 - 1 x HDMI output - 1 x DP output - 1 x Line-in ( 3.5 mm ) - 1 x Line-out ( 3.5 mm ) - 2 x 10/100/1000 Mbps Ethernet port - 1 x DC port - 1 x Security lock slot
Network and Wireless Connection - 10/100/1000 Mbps Ethernet - 2.4 GHz/5 GHz dual band Wi-Fi - Bluetooth 4.0 - Warranty Information: 1 year
Other Physical Features - Dimension (W x D x H): 726.5mm X 129.6mm X 88.5mm - Power : 100 to 240 VAC, 50/60 Hz, 12V DC input - Power consumption : max 60W - Operating humidity: 10% to 90% relative humidity - Operating temperature: 0°C to 40°C ambient temperature
Package Includes - HD9Pro all-in-one endpoint - MIC TRIO expansion microphone(optional) - HDMI cable - DP-HDMI cable - Power adapter - User manual
