Smart Touch Interactive Display for Easy Collaboration

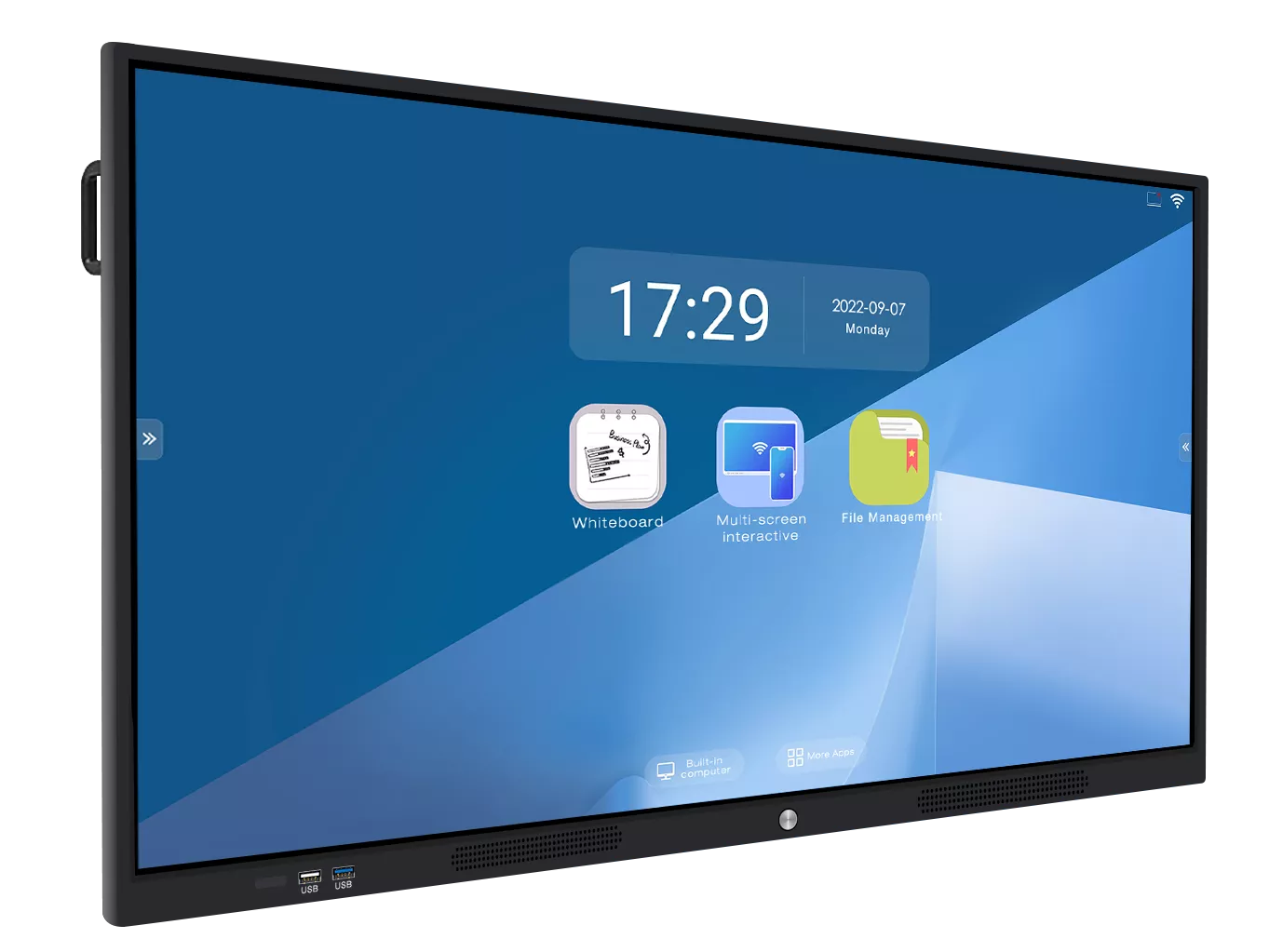

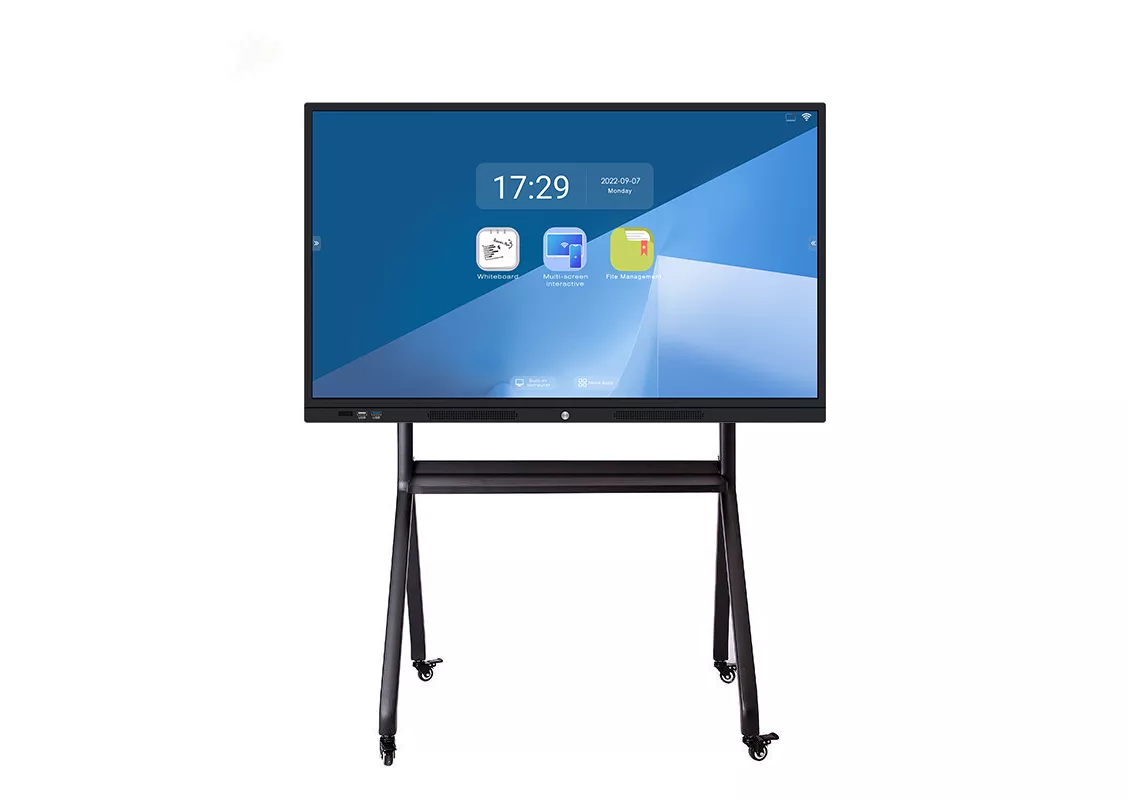

The interactive display CB55 is an all-in-one designed smart board designed for easy team collaborations including video conferencing, wireless sharing, electronic whiteboard demonstration, etc.
It supports up to 3840*2160 UHD resolution, 20-point touch, 4mm explosion-proof tempered glass, with fast response speed and intelligent operation. And integrated with dual operating systems of Android and Windows for various applications.
Just enjoy intelligent writing and flexible touch control on this device, and teamwork seamlessly.

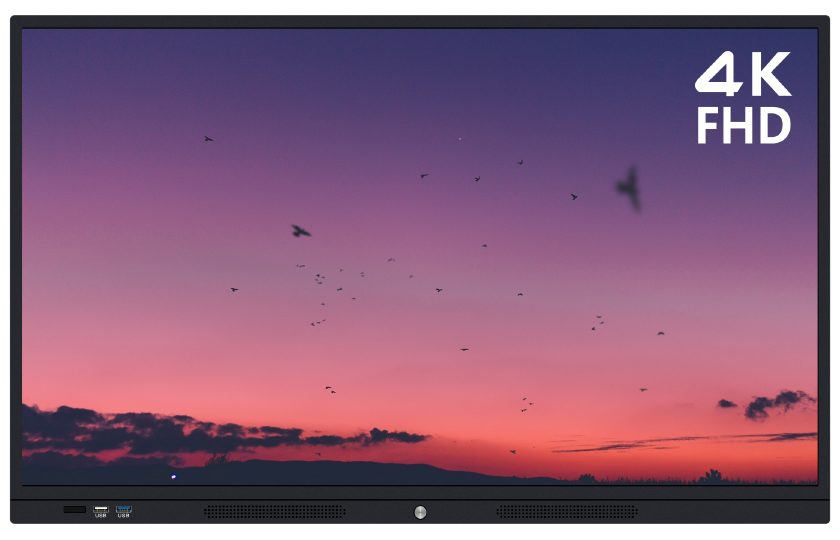

High definition LED screen, LG A+ grade 1.07B colour original panel,
AWB TECH, suit for universal application scenarios.

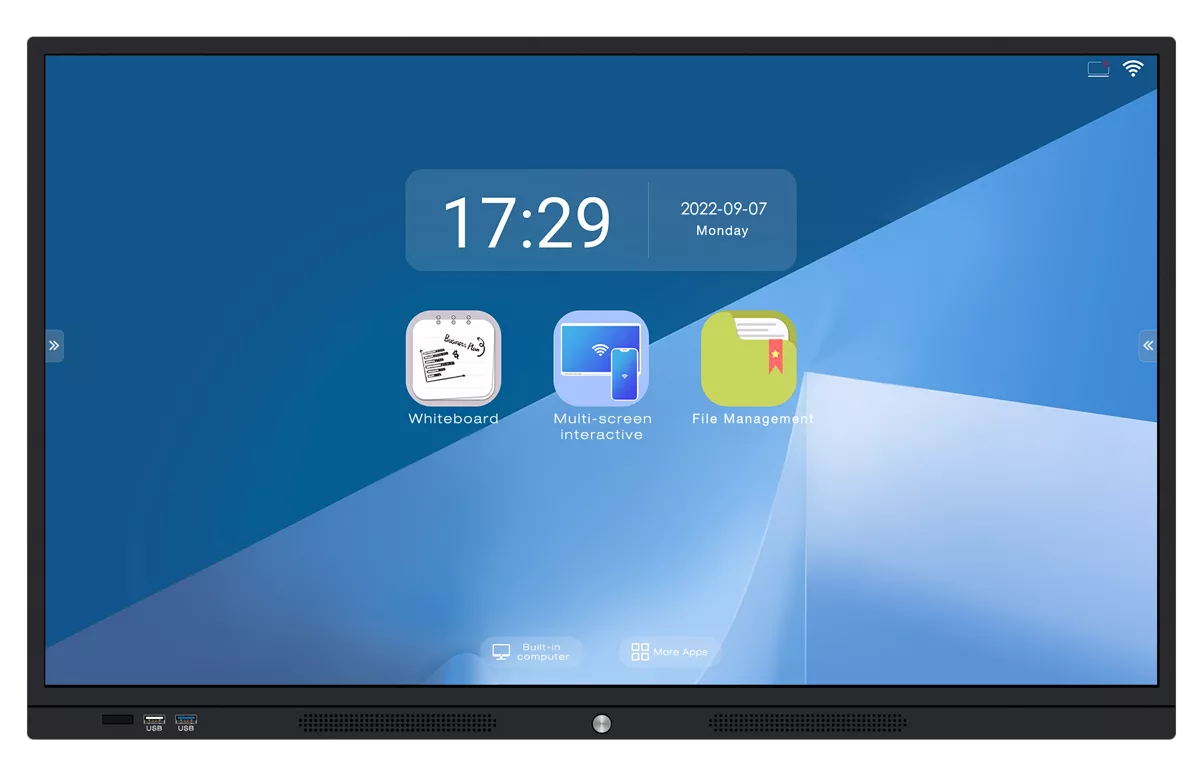

The writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like. Freely write, annotate and screen shot. Automatically recognize input channel.

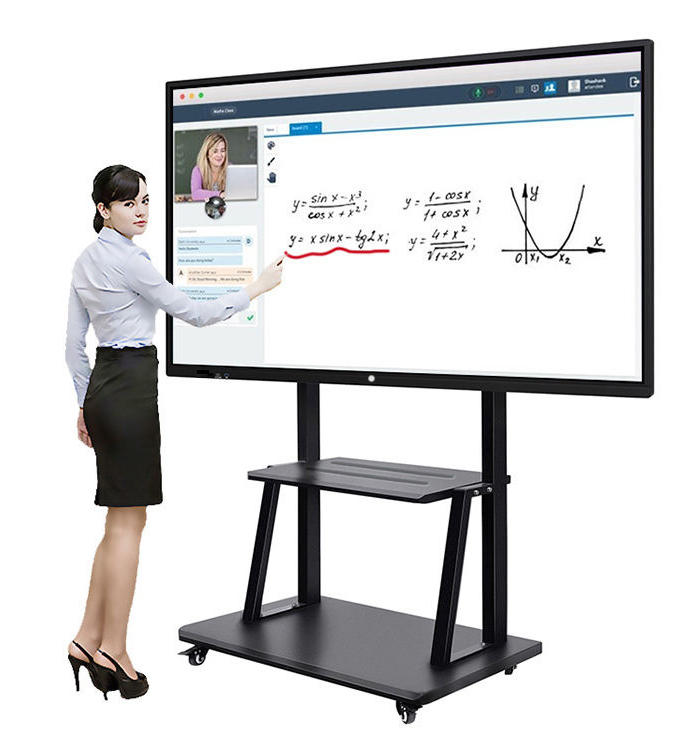

WHITEBOARD AND DOCUMENT
Simple to operate, just a click to join in communication.
With help of whiteboard and document sharing function,
just greatly improve our communication efficiency.

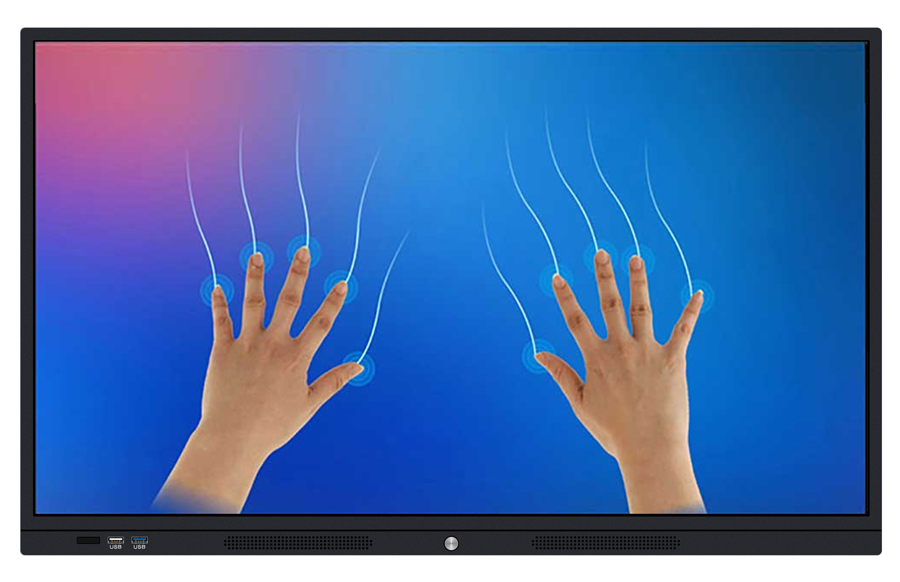

& TOUCH CONTROL
20 point touch&0.8ms response accurate，
fast touch，no delay.

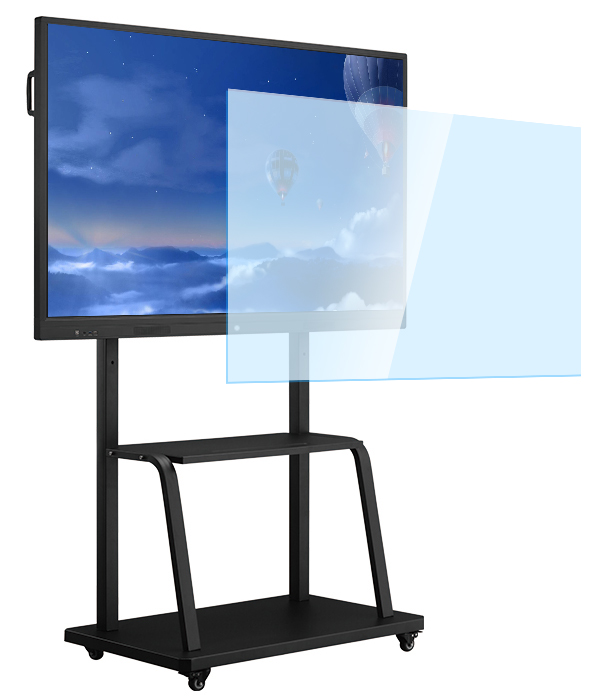

4mm Ultra-Thin rating 7 glass can protect screen effectively.
DUAL OS WINDOWS&ANDROID
Windows and android dual system built-in design.Support third-party application download.
Model:Collaboration Board CB55
Type:55”- 98”, more sizes are available
Operating System Info:
CPU:intel i3 (intel i5/i7 option)
RAM:4GB RAM; (8GB/16GB option)
Memory:120GB SSD;(240GB SSD/1TB HDD option)
Windows OS:Windows 10
Android OS:Android 6.0
Memory:2GB RAM; 32GB ROM
Touch Technology:Infrared touch
Touch points:20 points
Input way:finger touch,or any opaque object
Touch life times:Over 60,000,000 times
Touch response speed:6ms
Display Panel Info.:
Ratio of display:16:9
Max. viewing angle:178°
Glass type:4mm tempered glass
Front Buttons:Power on/off*1

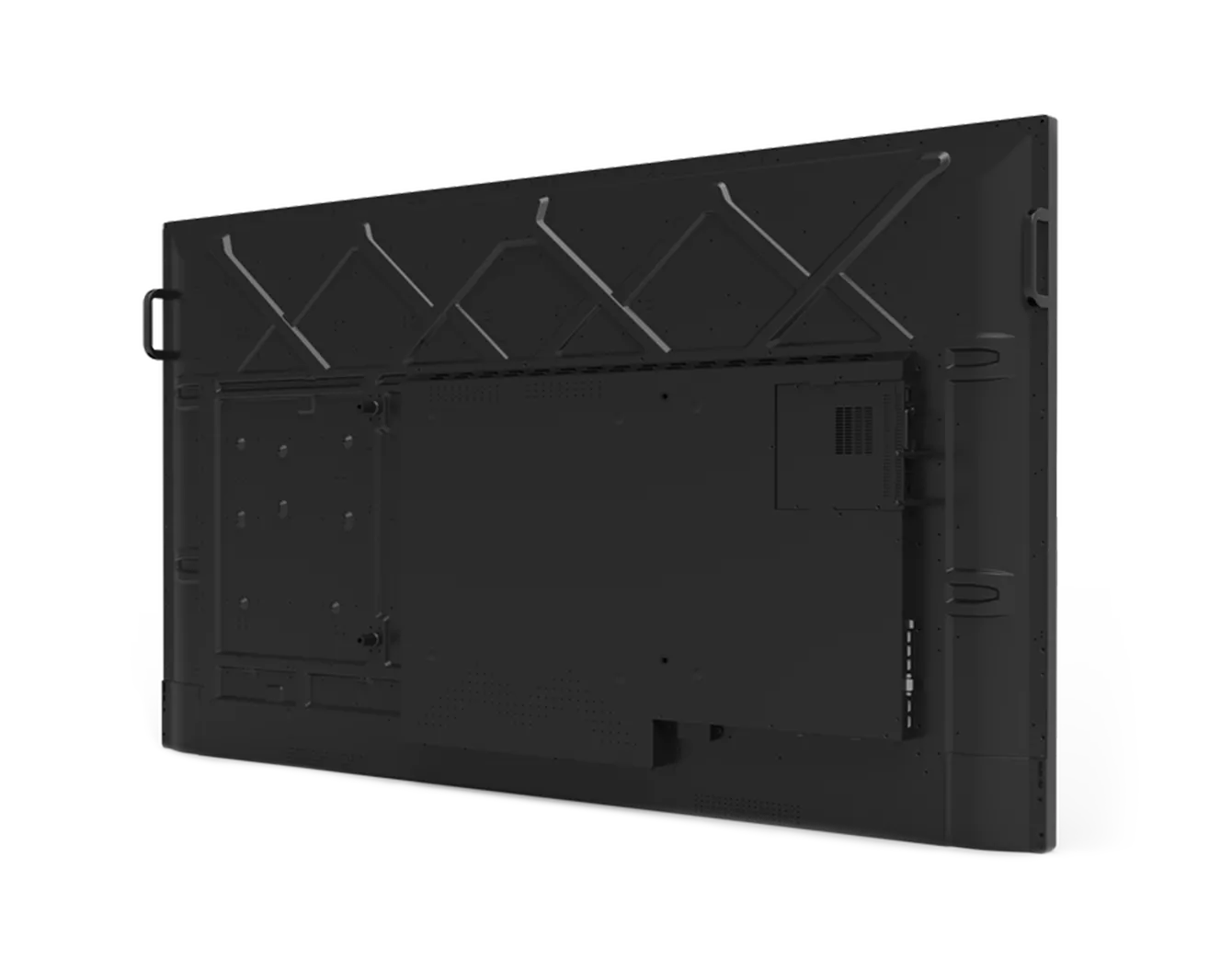

Back ports:(Exact ports info. depends on the model of OPS PC)
Power of display:178W
Wall Mounted bracker*1
Collaboration Board CB55 DataSheet EN.pdf
